Intel Core i7-13700K and Core i5-13600K tested, DDR5 & DDR4 Benchmarks Leaked with higher performance with higher power consumption

0
intel core i7 13700k and core i5 13600k tested ddr5 ddr4 benchmarks leaked with higher performance with higher power consumption

The most recent Raptor Lake Core i7-13700K and Core i5-13600K benchmark results for DDR5 and DDR4 platforms have been released. ExtremePlayer at Bilibili, which has collected numerous performance, power, and temperature findings of the 13th Gen CPUs, is the source of the latest test results. To get further details about the device, stay with our blog and continue reading the following subject matter.

Intel Core i7-13700K and Core i5-13600K tested, DDR5 & DDR4 Benchmarks Leaked with Up To 12% Faster in Single & 40% Faster in Multi-Core performance with higher power consumption and temps

The Core i9-13900K, Core i7-13700K, and Core i5-13600K of Intel’s Raptor Lake CPUs are already being subjected to several tests. The updated benchmarks provide a clearer picture of the performance differences between DDR5 and DDR4, as well as the power consumption and temperature data for the two QS processors, which will be included in the final retail product. Although there may be a few minor disbranches between the retail and QS portions due to the premature BIOS, we anticipate that the final performance will fall within the 5–10% margin. Let’s quickly review the characteristics that both of these chips have to provide before we discuss the performance outcomes.

Intel Core i7-13700K 16 Core Raptor Lake CPU Specs

intel core i7 13700k specs
intel core i7 13700k specs

The Raptor Lake CPU lineup’s fastest 13th Gen Core i7 chip will be the Intel Core i7-13700K. There are a total of 24 threads and 16 cores on the processor. 8 P-Cores based on the Raptor Cove design and 8 E-Cores based on the Grace Mont core architecture enable this combination. The CPU has a 54 MB cache with 30 MB of L3 cache and 24 MB of L2 cache. The chip’s boost clock was 5.40 GHz, and its base clock was 3.4 GHz. The P-Cores’ all-core boost is clocked at 5.3 GHz, while the E-Cores have base and growth speeds of 3.4 GHz and 4.3 GHz, respectively.

  • Core i7-13700K 8+8 (16/24) – 3.4 / 5.3 GHz – 54 MB Cache, 125W (PL1) / 225W (PL2)?
  • Core i7-12700K 8+4 (12/20) – 3.6 / 5.0 GHz, 25 MB Cache, 125W (PL1) / 190W (PL2)

Intel Core i5-13600K 14 Core Raptor Lake CPU Specs

intel core i5 13600k specs

Six Raptor Cove-based P-cores and eight Gracemont-based E-cores make up the total of 14 cores in the Intel Core i5-13600K. The E-Core count has been increased; however, the P-Core count is the same as the Intel Core i5-12600K. Therefore, compared to the Alder Lake Core i5-12600K, we are looking at a 40 percent core count increase and a 25 percent thread count increase. The CPU has a total cache size of 44 MB, consisting of 20 MB of L2 and 24 MB of L3 memory. The E-Cores run at 3.5 GHz base & 3.9 GHz boost clocks, while the clock speeds are set at 3.5 GHz base, 5.2 GHz boost, and 5.1 GHz all-core boost.

  • Core i5-13600K 6+8 (14/20) – 3.5 / 5.1 GHz – 44 MB Cache, 125W (PL1) /180W (PL2)?
  • Core i5-12600K 6+4 (10/16) – 3.6 / 4.9 GHz – 20 MB Cache, 125W (PL1) / 150W (PL2)

Intel Raptor Lake Core i7-13700K & Core i5-13600K CPU Power Consumption

image source: ExtremePlayer

The tech publication used ASRock Z690 Steel Legend WiFi 6E motherboards to test DDR5 and DDR4 versions to compare the results. A DDR4-3600 32 GB CL18 kit was used for DDR4, and a DDR5-6400 32 GB (CL40) kit for DDR5. A Thermalright Frozen Magic 360 AIO cooler was used for cooling.

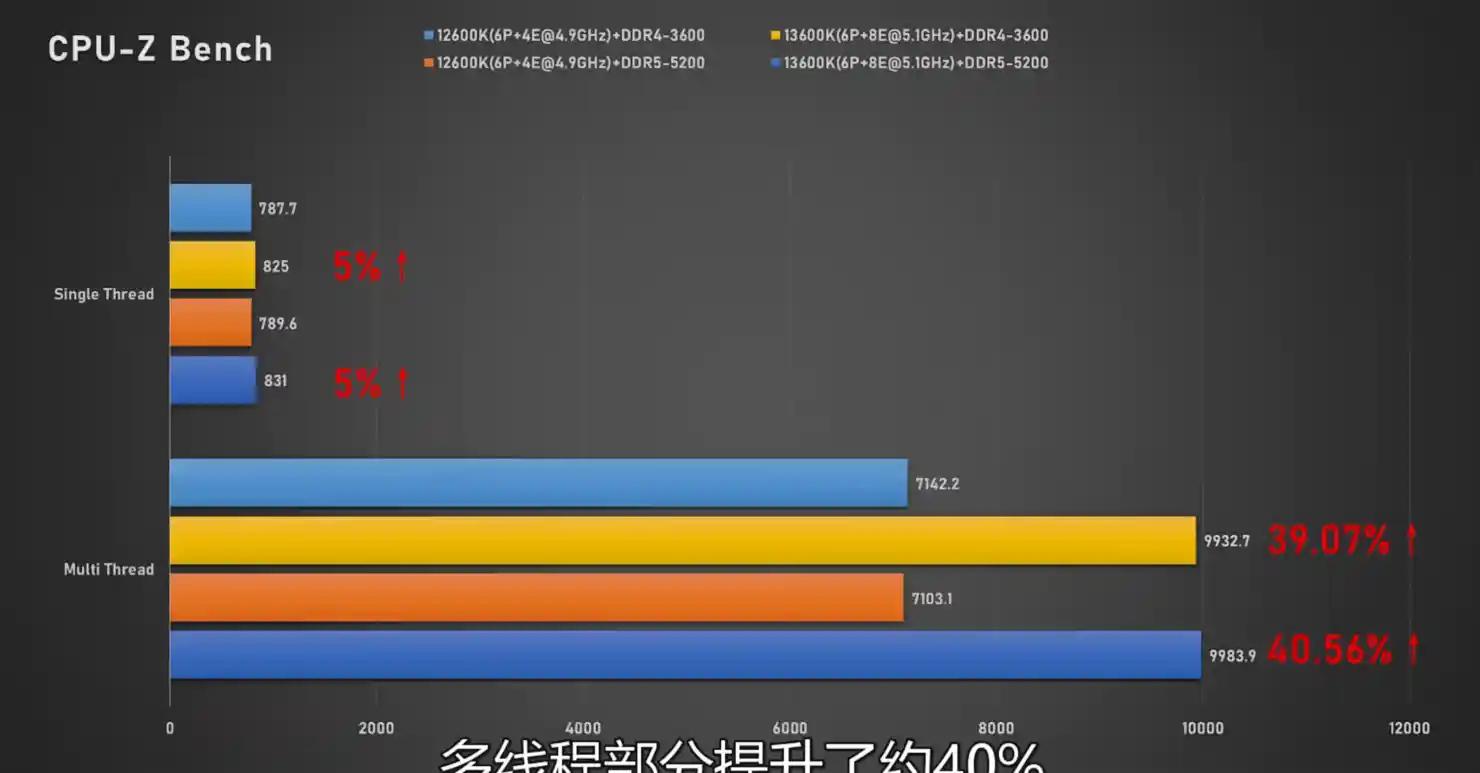

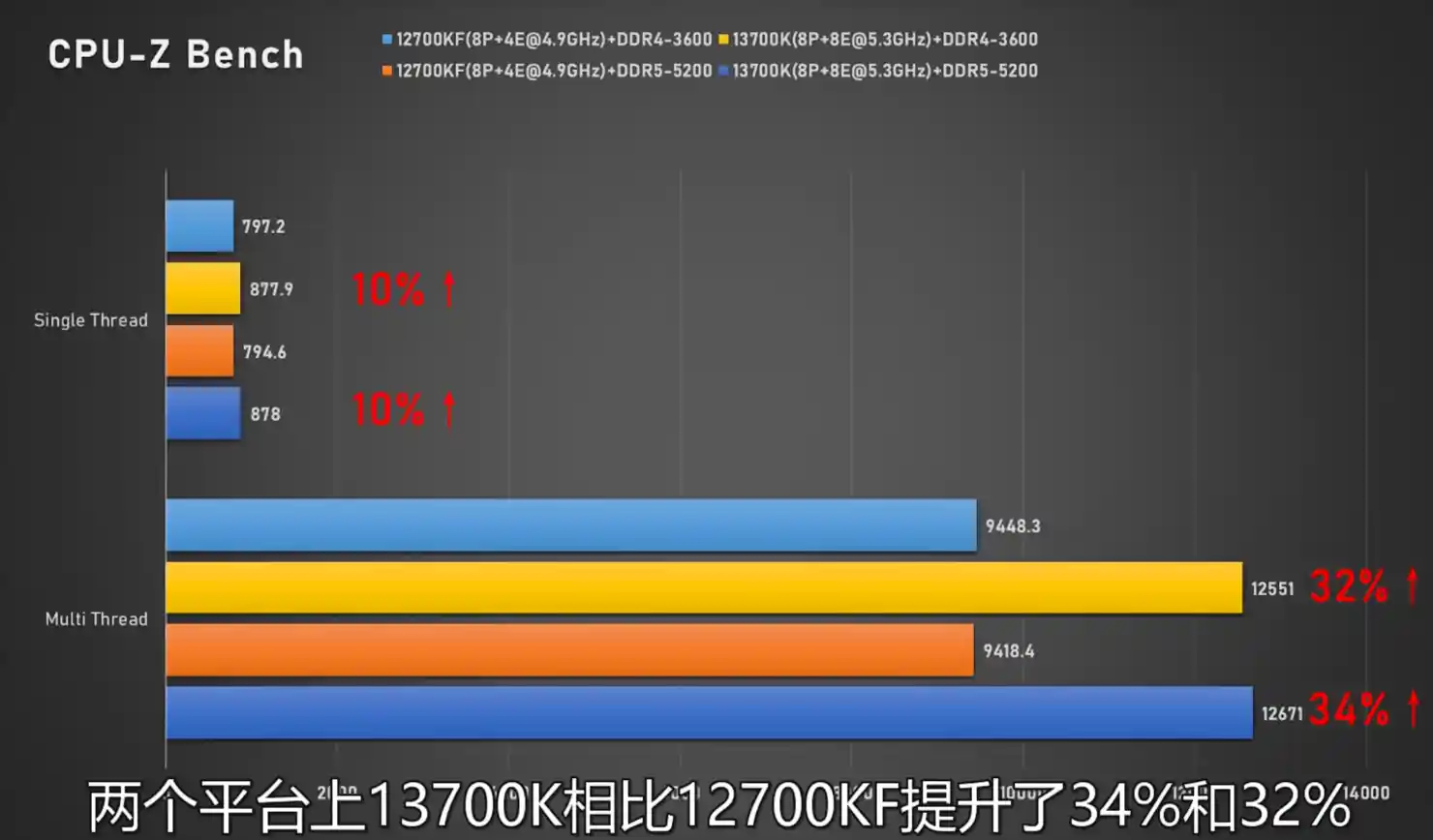

Regarding performance, many benchmarks were used to assess both Intel Raptor Lake CPUs. In CPU-z, the Core i7-13700K outperformed its predecessor by 10% in single-core performance and 34% in multi-core performance, while the Core i5-13600K outperformed it by 5% in single-core performance and 40% in multi-core. The following charts show the complete benchmarks.

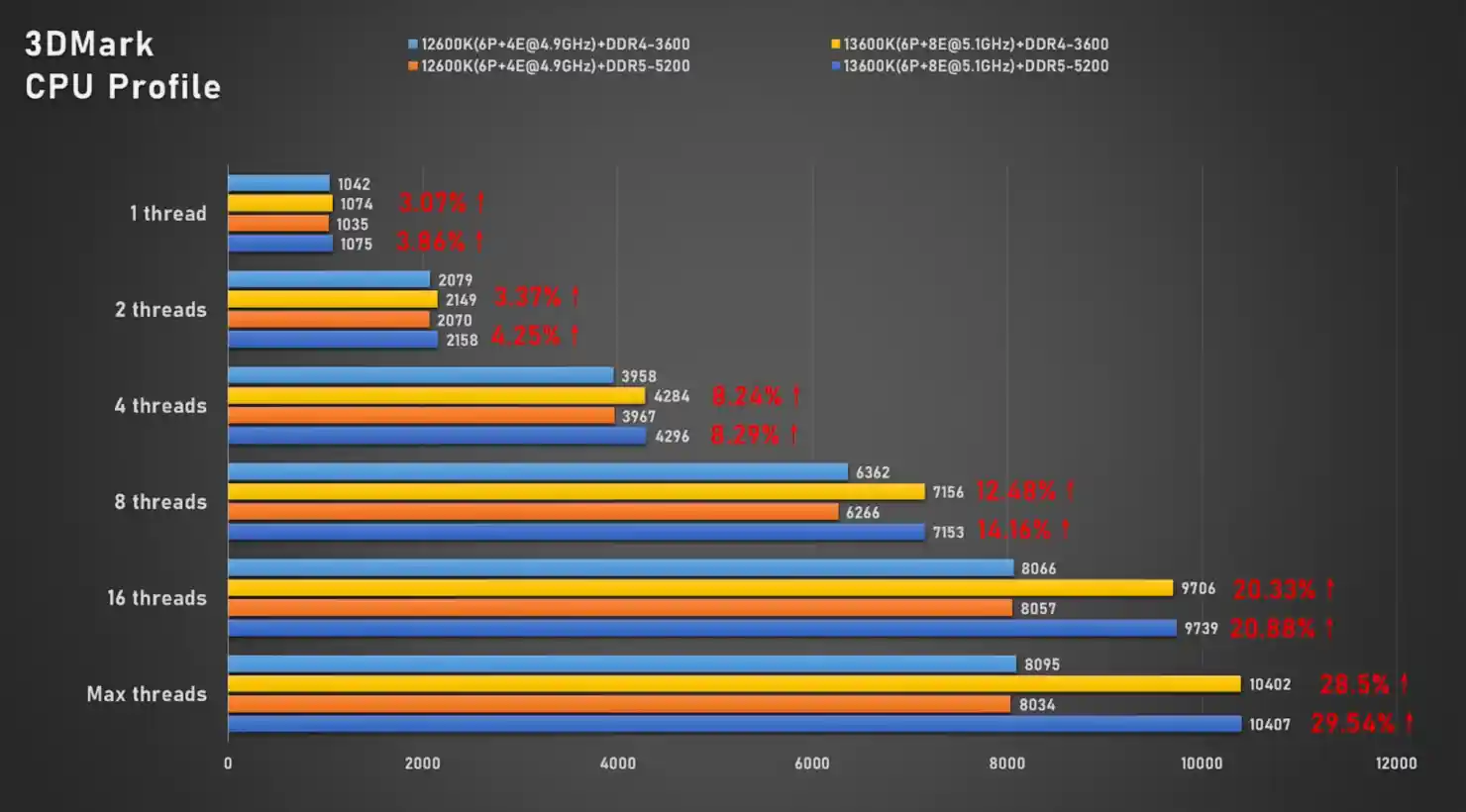

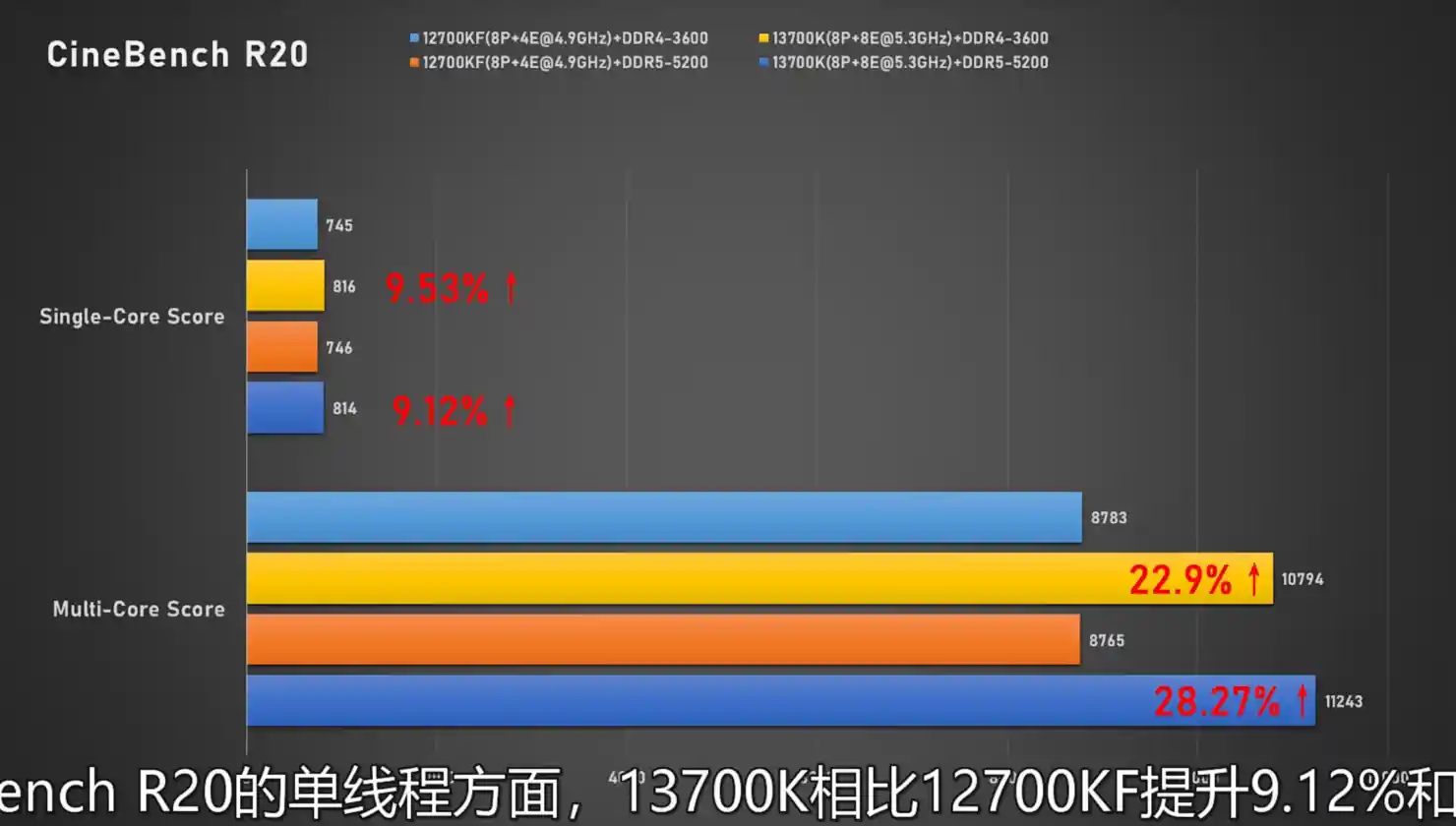

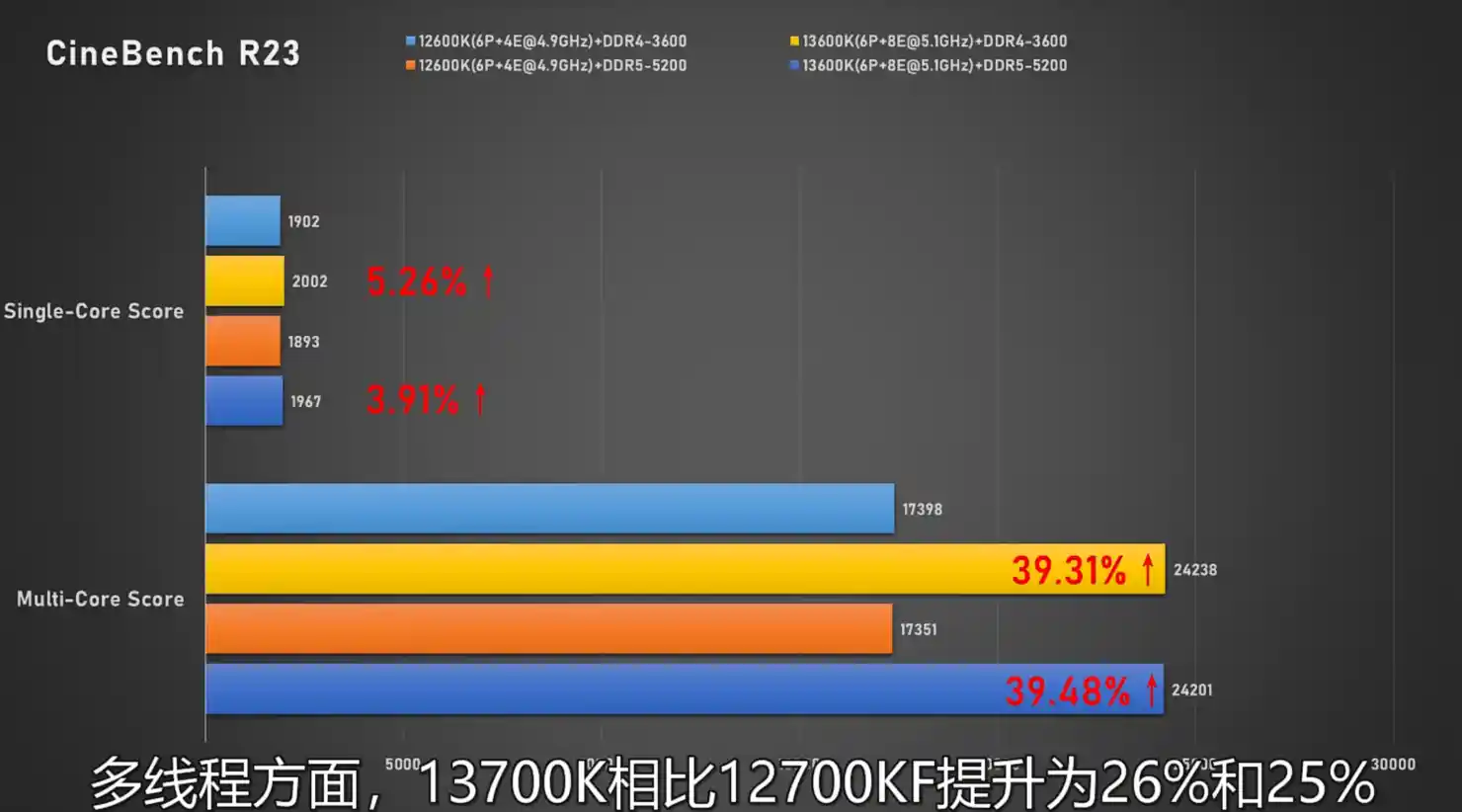

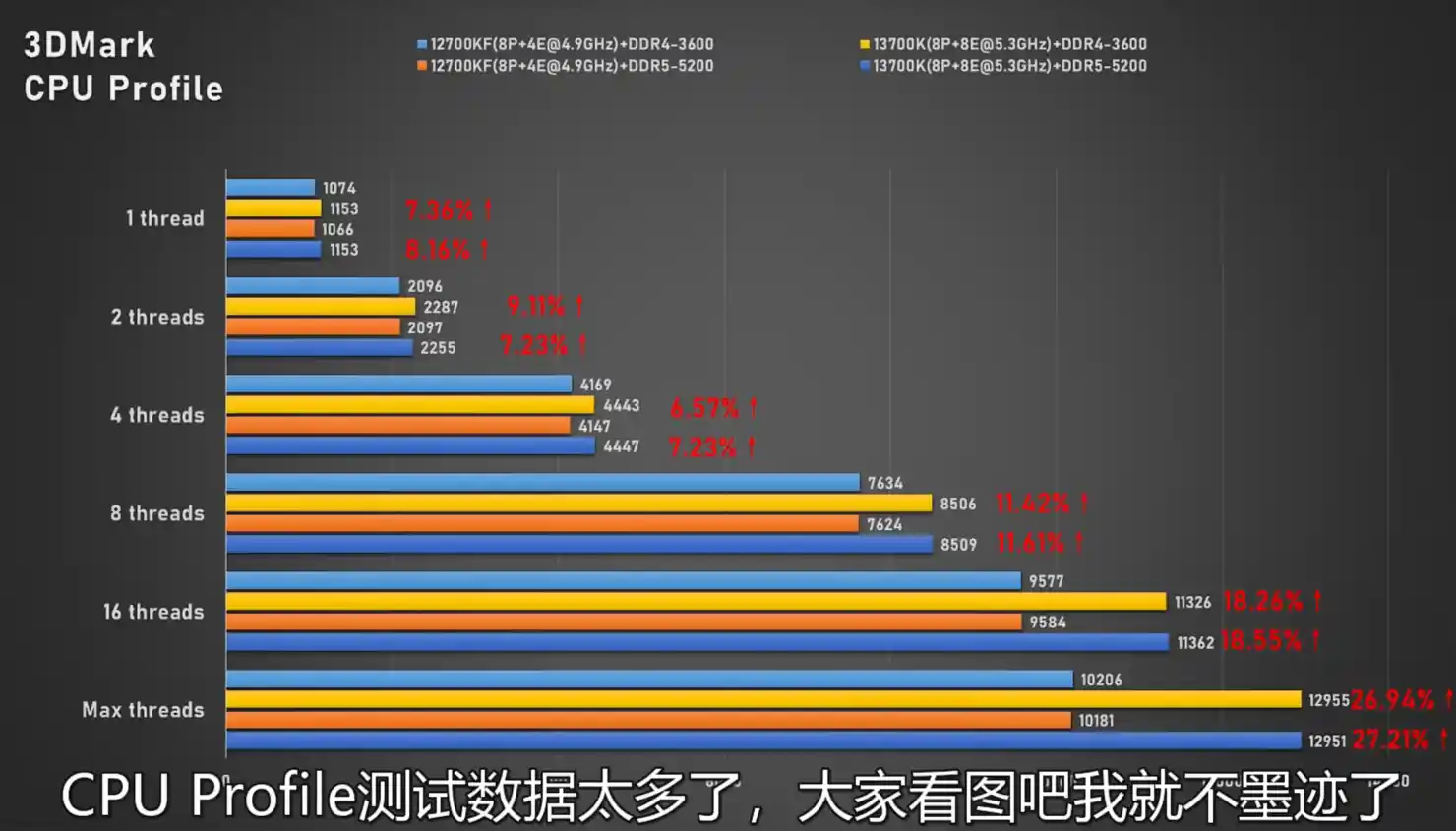

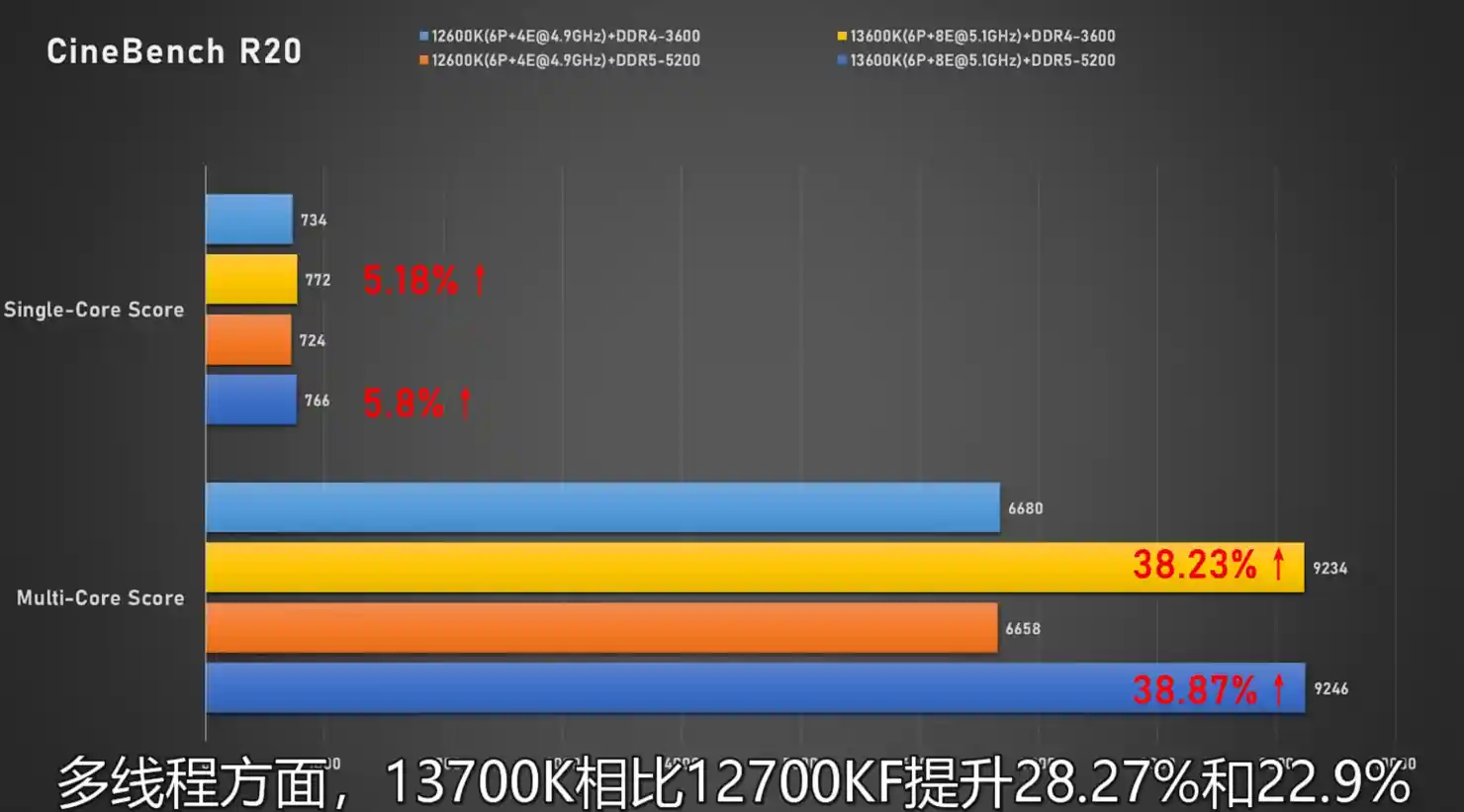

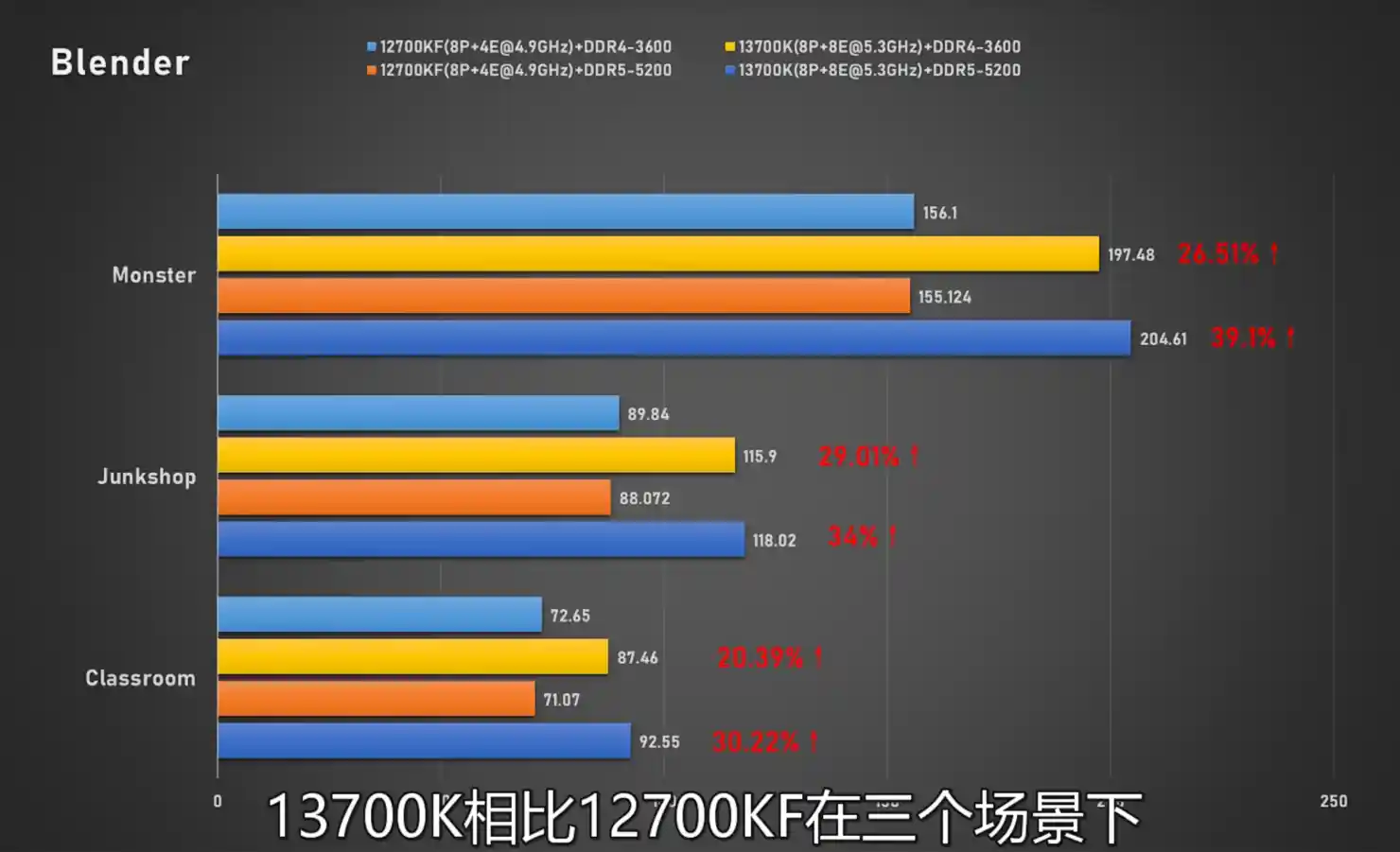

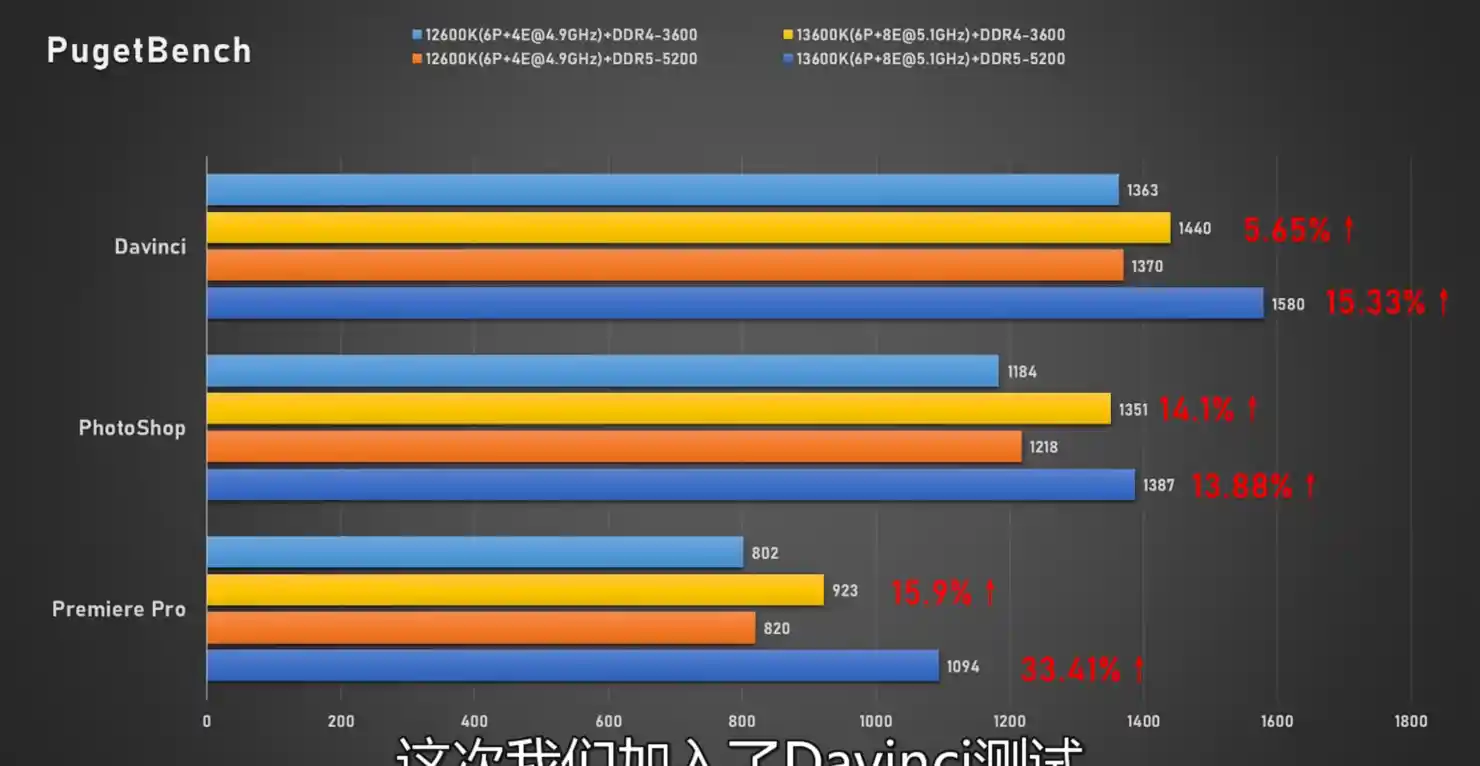

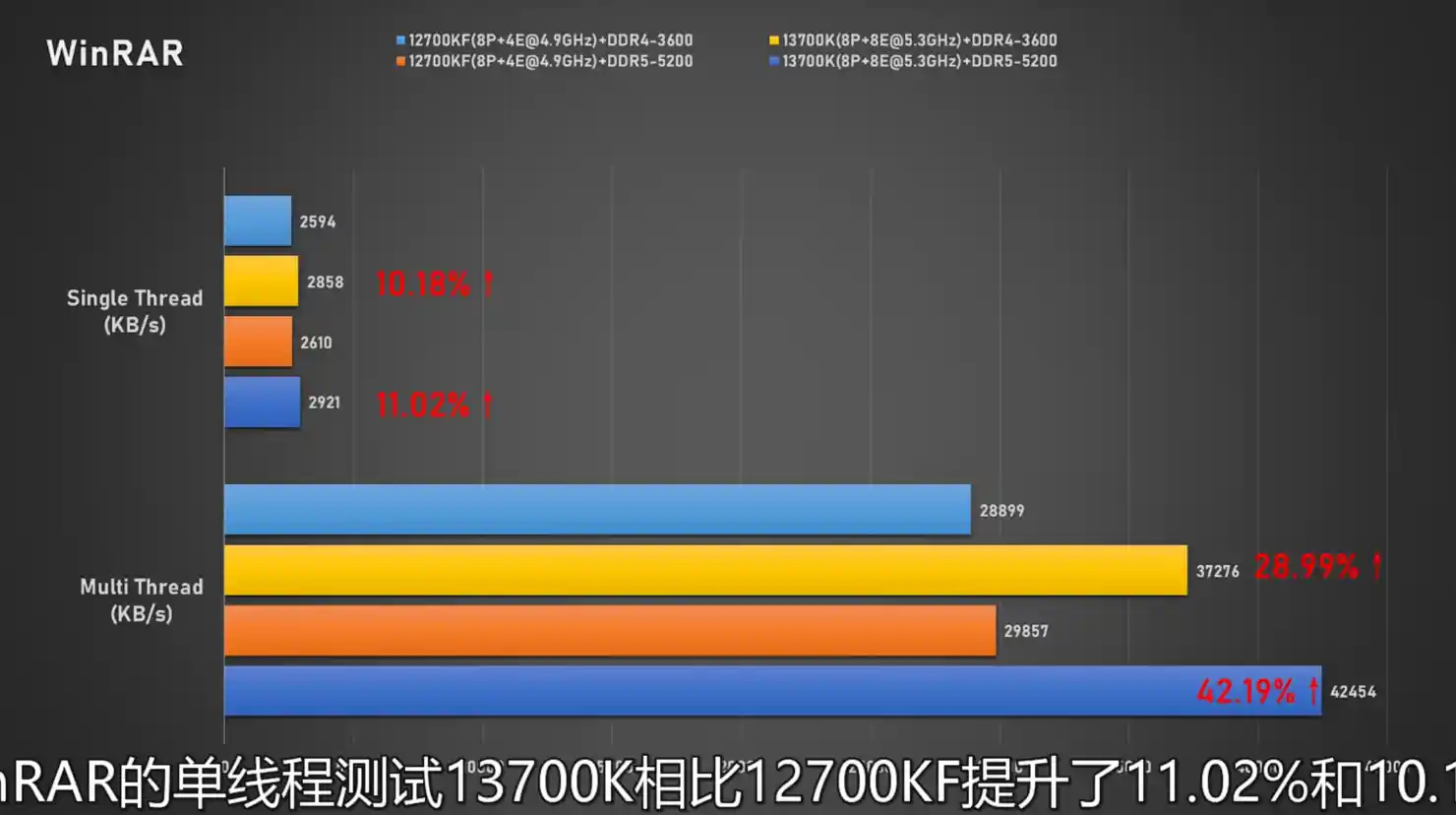

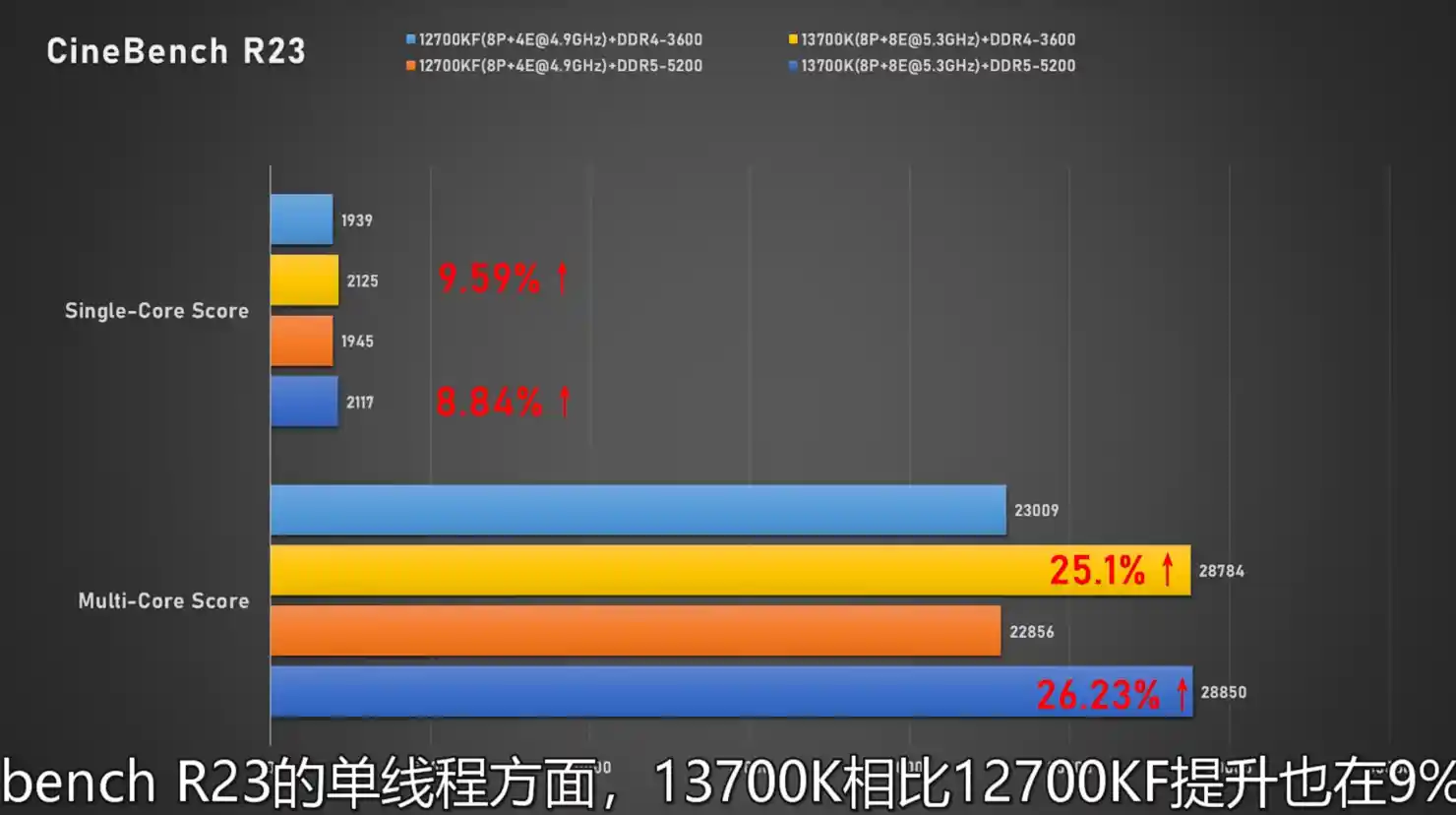

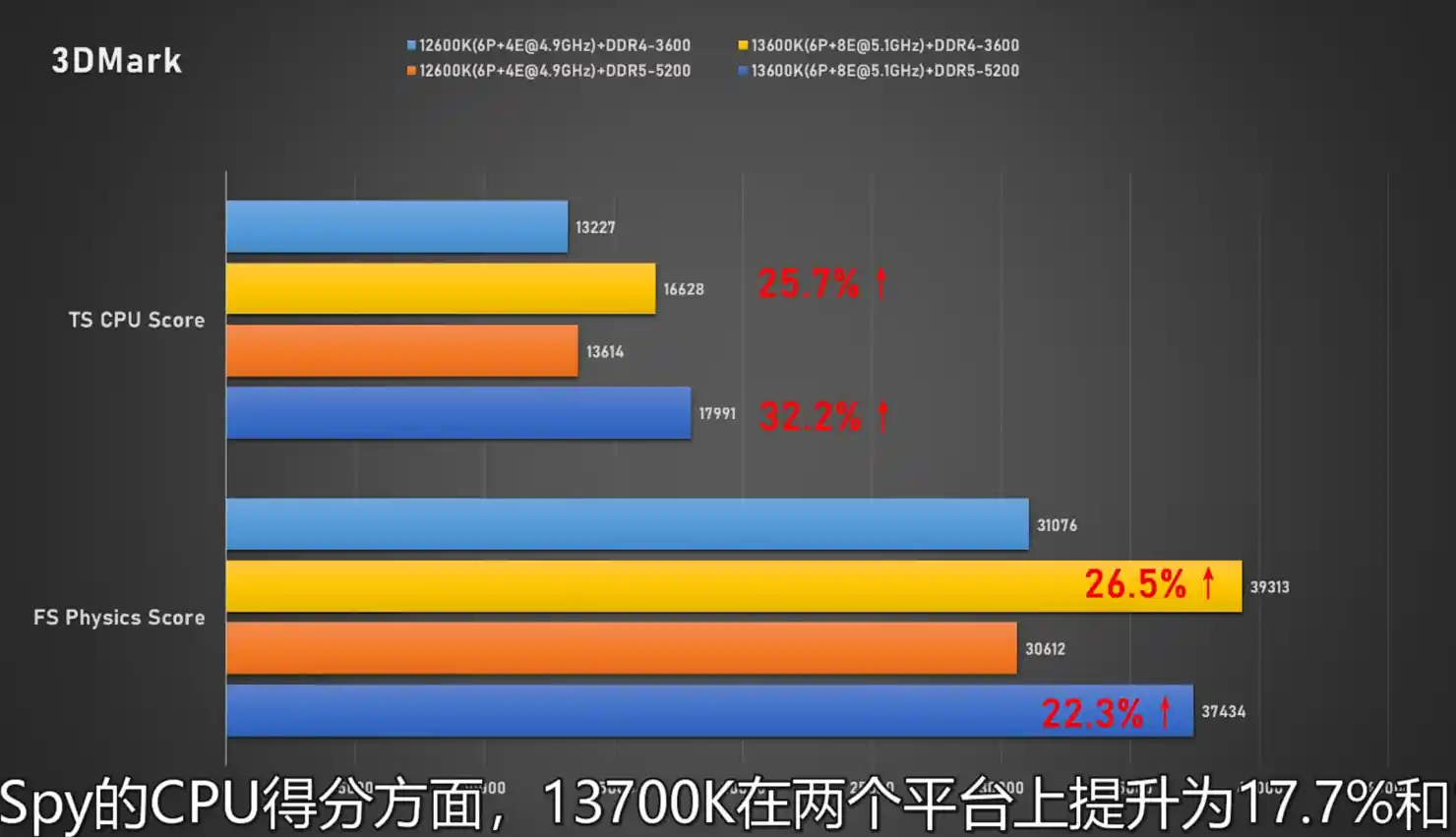

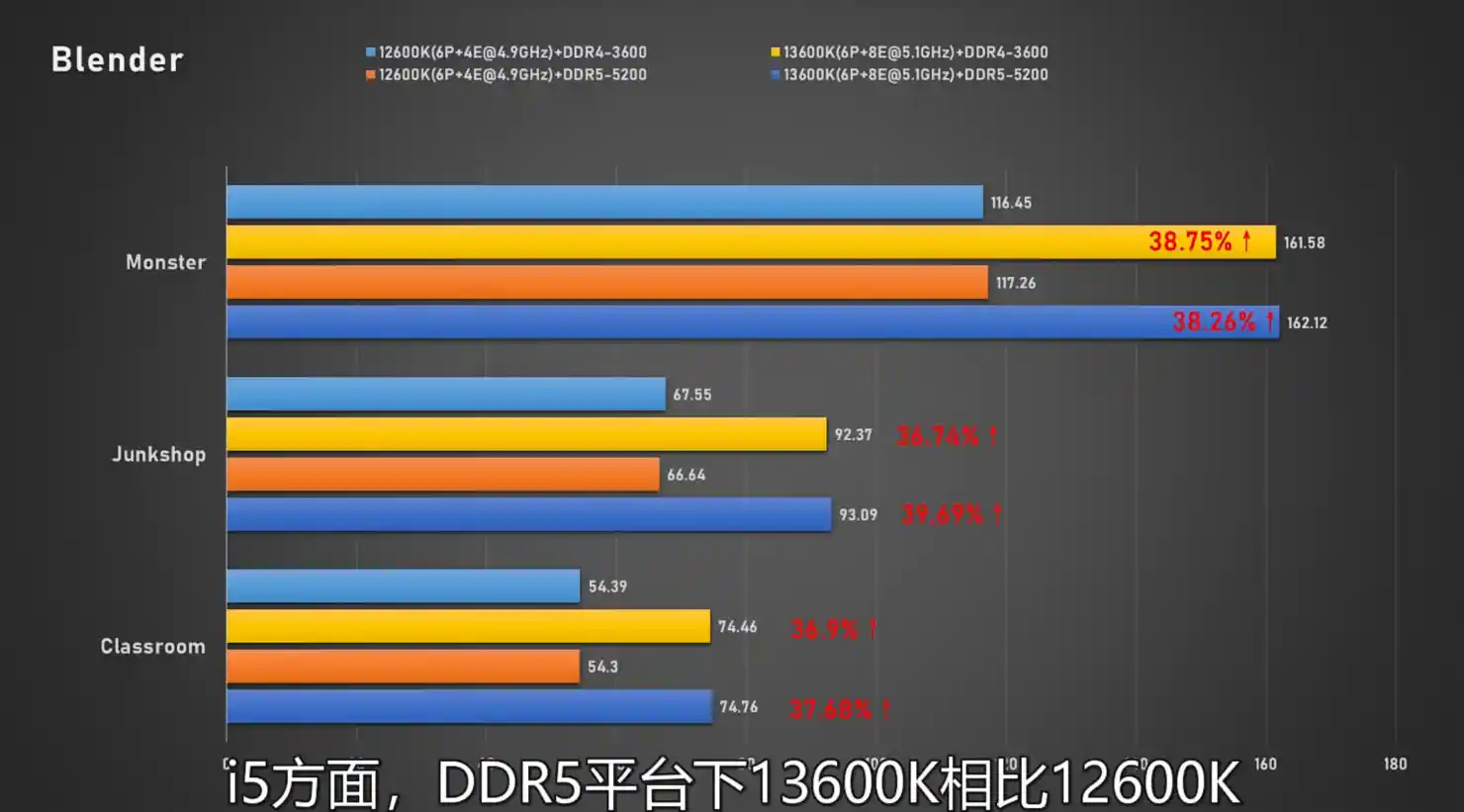

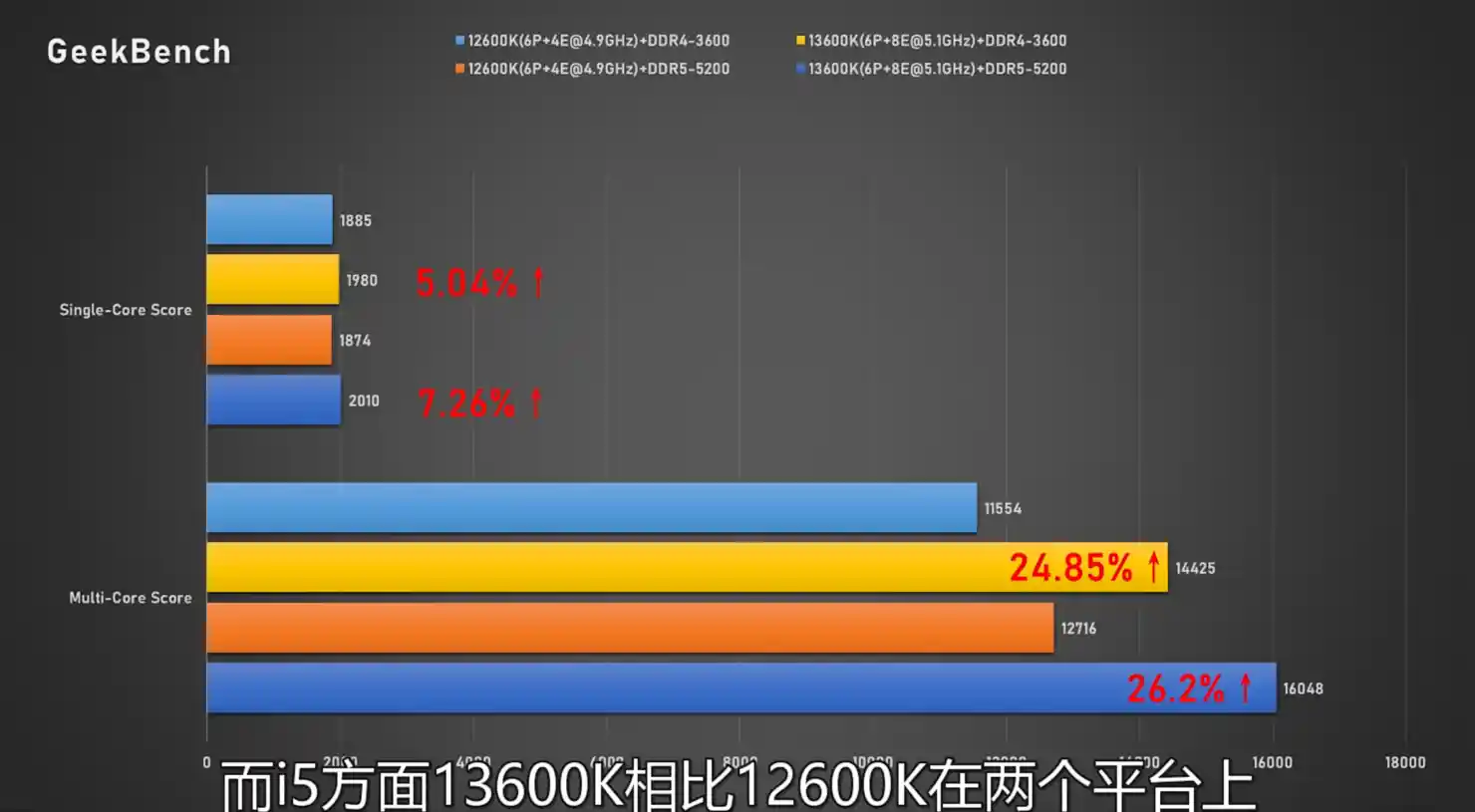

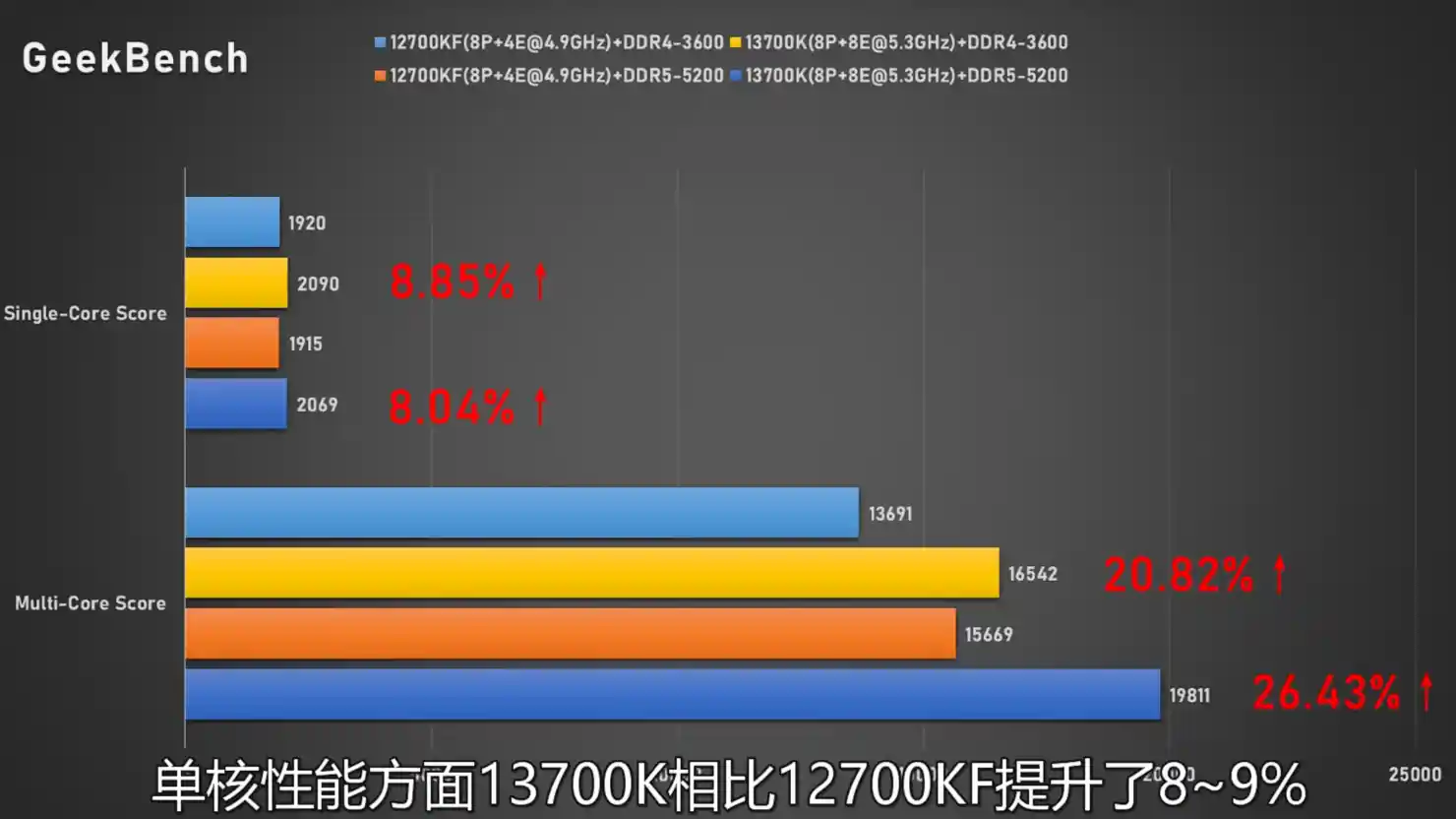

Intel Raptor Lake Core i7-13700K & Core i5-13600K CPU Benchmarks

When all single-core tests are considered, the Intel Core i7-13700K CPU shows a 12 percent gain, while the Core i5-13600K shows a 9.6 percent improvement. For multi-core tests, the Intel Core i7-13700K offers an average performance improvement of 32.7 percent, while the Core i5-13600K offers a gain of 34 percent.

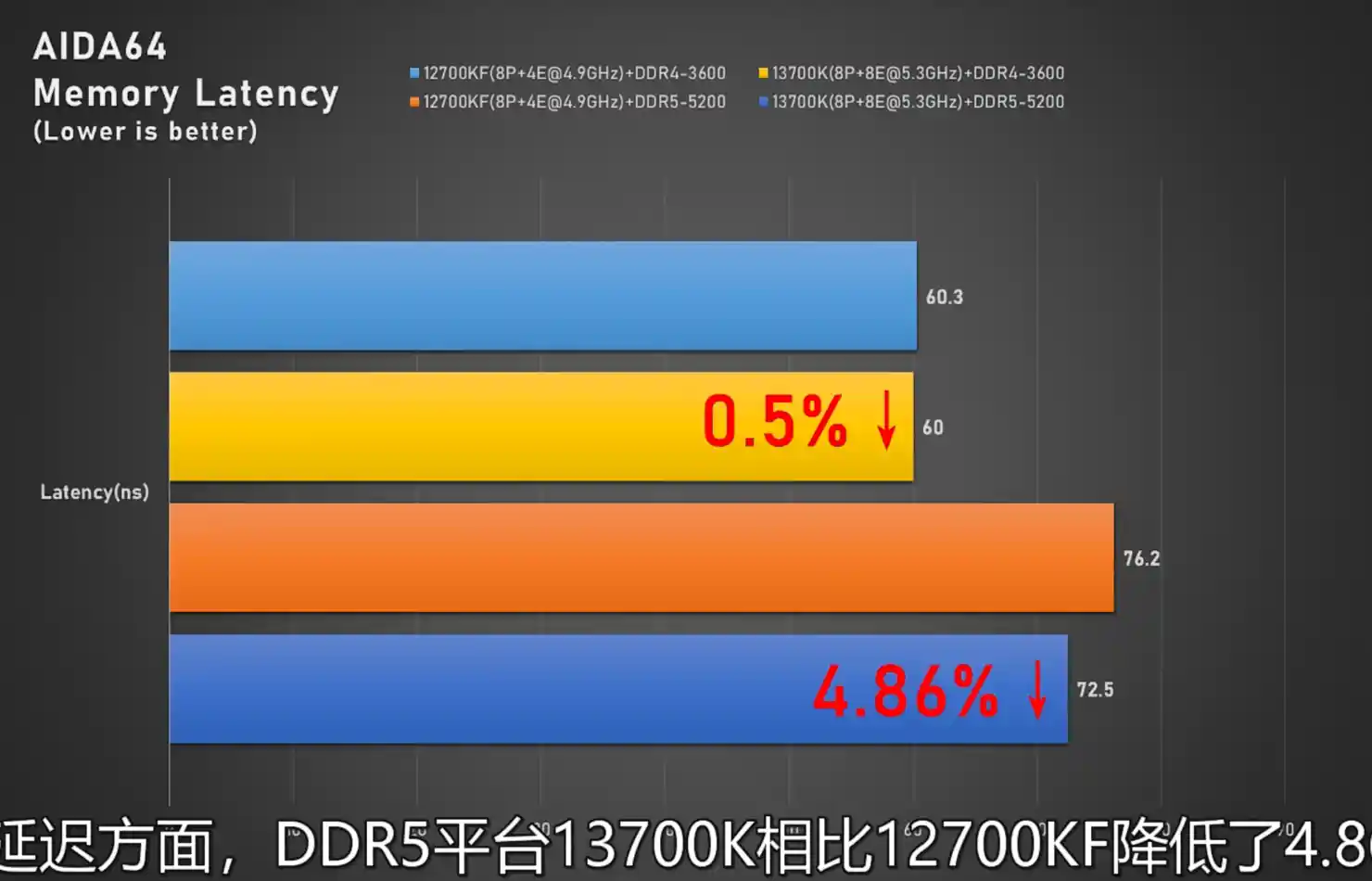

Intel Raptor Lake Core i7-13700K & Core i5-13600K CPU Latency Tests

Both CPUs produce almost the same latency with DDR4 memory; however, the higher-end model’s DDR5 DRAM results in somewhat better latency figures, reducing the full latency time by 4.86 percent.

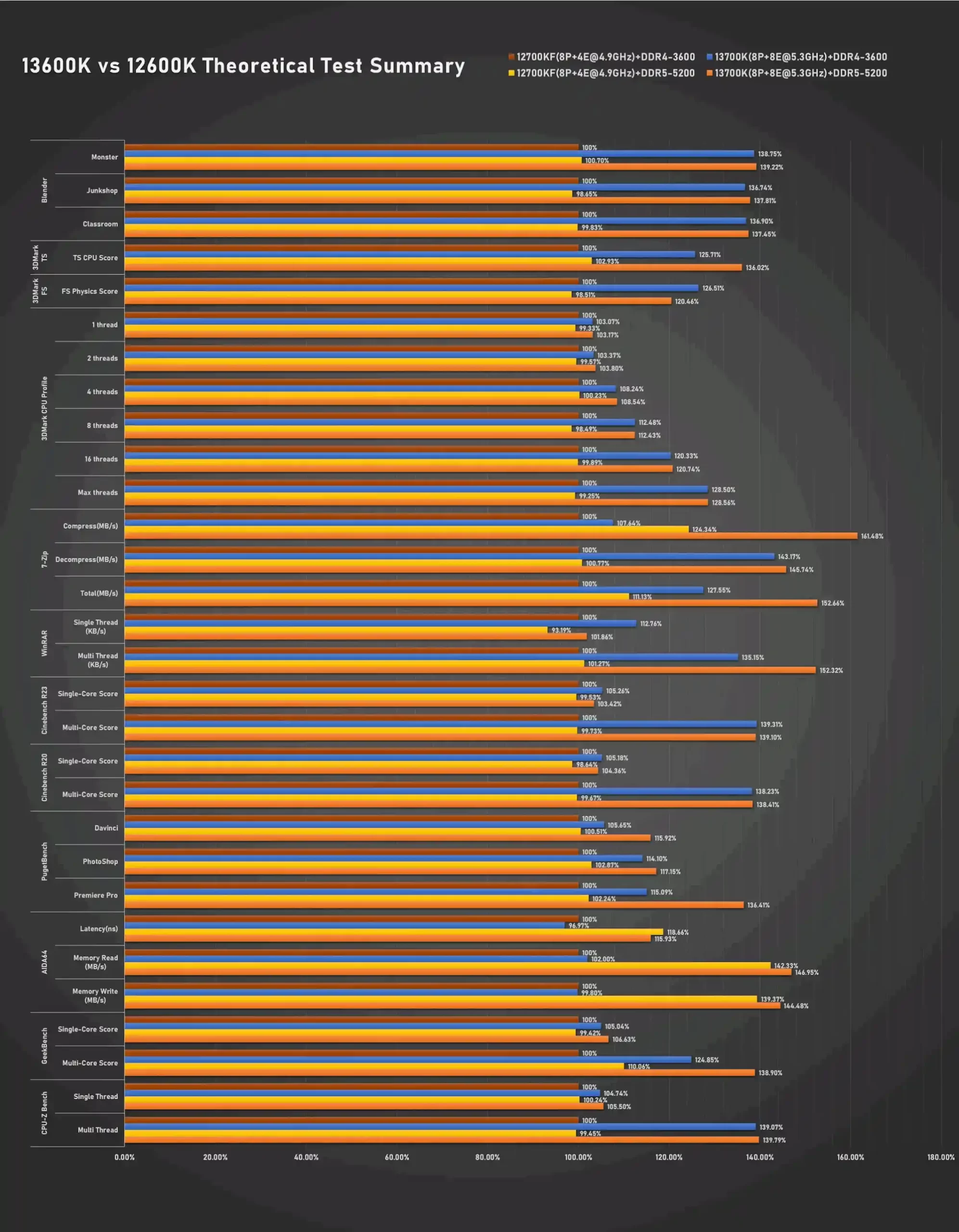

Intel Raptor Lake Core i7-13700K & Core i5-13600K CPU Benchmarks Compilation

Regarding power consumption, the Intel Core i7-13700K used about 30% more energy than the Core i7-12700KF, while the Core i5-13600K used about 20% more fuel. Both processors were working at temperatures above 100°C due to the added power, and the Core i7 exceeded the 115°C wall limit. It was reported that the package’s peak output was 433W.

Image Credits: ExtremePlayer

You may view more Core i9-13900K benchmarks here and here, where you can find additional Core i5-13600K benchmarks. The premium Core i9-13900K and Core i5-13600K desktop CPUs from Intel’s 13th generation Raptor Lake are scheduled to debut on the Z790 platform in
October. The Ryzen 7000 CPU family from AMD, which debuts in the fall of 2022, will compete against these CPUs.

Intel 12th Gen Alder Lake-S & 13th Gen Raptor Lake-S Desktop CPU Comparison:

CPU NAMEP-CORE COUNTE-CORE COUNTTOTAL CORE / THREADP-CORE BASE / BOOST (MAX)P-CORE BOOST (ALL-CORE)E-CORE BASE / BOOSTE-CORE BOOST (ALL-CORE)CACHETDPMSRP
Intel Core i9-13900K81624 / 32TBA / 5.5 GHz+5.4 GHz (All-Core)TBATBA68 MB125W (PL1)
250W (PL2)?
TBA
Intel Core i9-12900K8816 / 243.2 / 5.2 GHz4.9 GHz (All Core)2.4 / 3.9 GHz3.7 GHz (All Core)30 MB125W (PL1)
241W (PL2)
$599 US
Intel Core i7-13700K8816 / 243.4 / 5.4 GHz5.3 GHz (All Core)3.4 / 4.3 GHzTBA54 MB125W (PL1)
228W (PL2)?
TBA
Intel Core i7-12700K8412 / 203.6 / 5.0 GHz4.7 GHz (All Core)2.7 / 3.8 GHz3.6 GHz (All Core)25 MB125W (PL1)
190W (PL2)
$419 US
Intel Core i5-13600K6814 / 203.5 / 5.2 GHz5.1 GHz (All-Core)3.5 / 3.9 GHzTBA44 MB125W (PL1)
180W (PL2)?
TBA
Intel Core i5-12600K6410 / 163.7 / 4.9 GHz4.5 GHz (All Core)2.8 / 3.6 GHz3.4 GHz (All Core)20 MB125W (PL1)
150W (PL2)
$299 US

News Source: wccftech.com, videocardz.com
