Top 5 Best Budget B660 Motherboards (DDR4 Variant)

If you seek a budget-friendly motherboard, you can go with the Intel 12th generation motherboard. It contains Alder Lake processors then motherboards based on the B660 chipset can be a great alternative if you seek a low-priced motherboard with efficiency. However, everyone can’t use a Z690 motherboard for their Intel 12th generation CPU build because most typical users cannot afford it and want a low-budget motherboard.

Furthermore, not every user needs to need the flagship Z690 chipset. The reason behind it is that most of the users already have a non-overclocked Intel 12th generation processor, or they do not want that much number of structures, extension slots, and l/o ports.

In today’s practical scenario, a decent B660 motherboard proposes great stability between performance, features, and price. In B660, You will be unable to carry out CPU overclocking, but memory overclocking is supported by this motherboard generation. Furthermore, the B660 chipset drives with fewer PCIe 4.0/3.0 lanes, slots, and I/O ports than the Z690 chipset, and PCIe RAID 0/1/5 is also not supported, although SATA RAID 0/1/5 is supported. One of the key features that are supported for Integrated Intel Wi-Fi 6E.

So, if you seek budget B660 motherboard options, here we are sharing a list of efficient motherboards that will trade in the market with the users. All the best B660 motherboards we are presenting here support DDR4 only.

List of Top 5 Best Budget B660 Motherboards (DDR4 Variant)

Mainstream Segment Best Budget B660 Motherboard

Here, we are speaking about the best budget-friendly B660 motherboards that can be used for a budget, mid-range, or even a high-end Intel 12th generation processor.

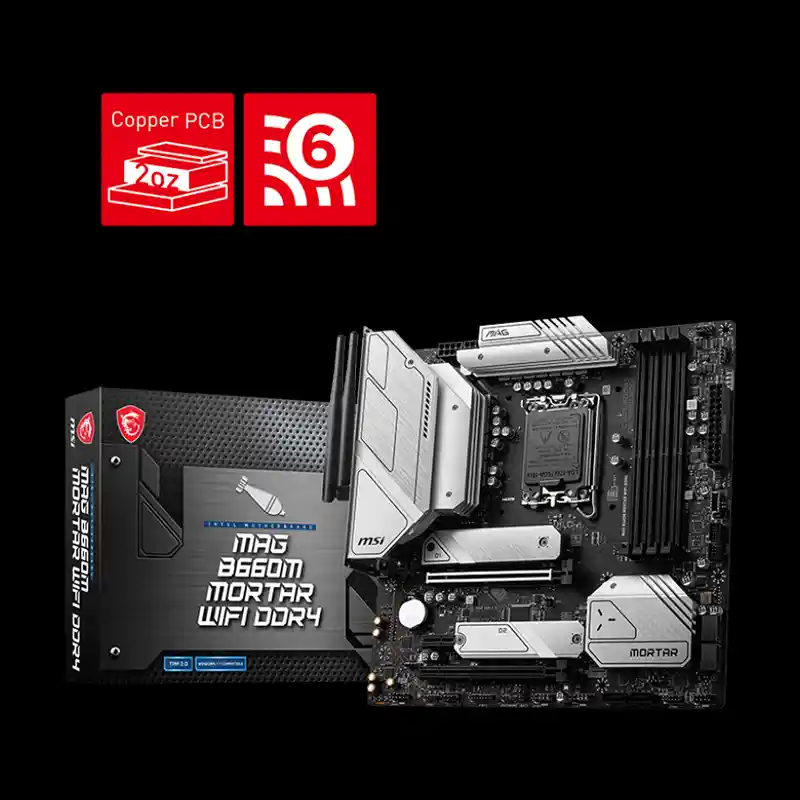

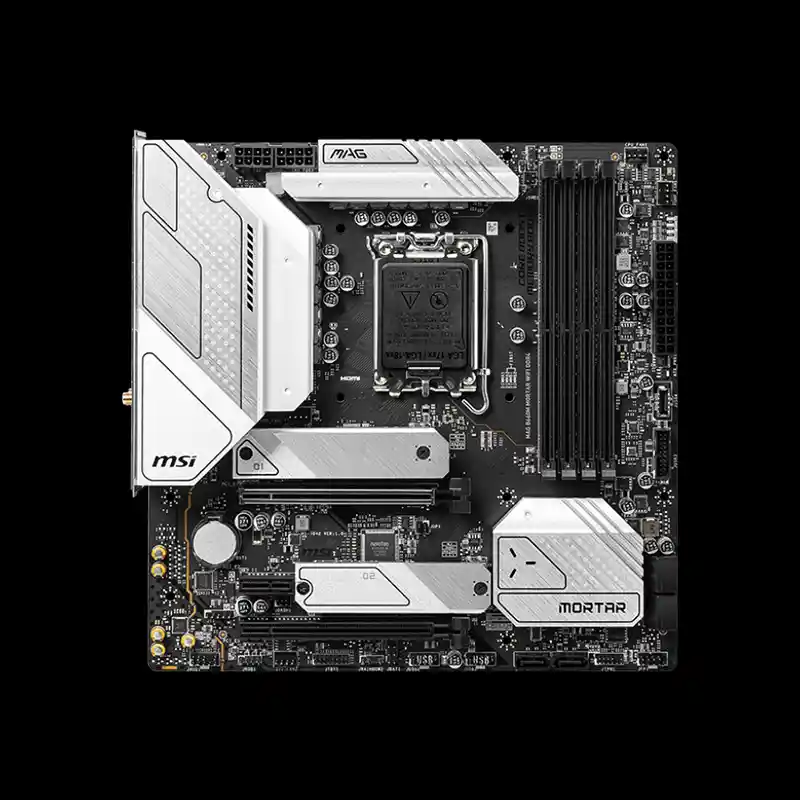

1. MSI MAG B660M Mortar WiFi DDR4

MSI MAG B660M MORTAR WIFI DDR4 is one of the best low-cost, user-friendly B660 motherboards. Users can purchase it for their Intel 12th generation processor. It comes with a micro-ATX form factor motherboard, which can easily be fitted in a small tower or smaller cases. The board supports DDR4 RAM up to 4800 MHz (O.C.) speed and 128GB size. For graphics cards, the motherboard comes with two PCIe x16 niches, in which the first slot is PCIe 4.0 x16 and protected by Steel Armored. For NVMe drives, the board has got two M.2 niches, and both of them are PCIe 4.0 x4 and appear with heatsinks installed for chilling.

When it arrives in the power supply, the motherboard uses a 12 + 1 +1 Duet Rail Power System that can conveniently run a high-end Intel 12th generation processor without creating any barrier. Exact sized heatsinks cool the VRM unit on the board. Network connectivity selections add 2.5G LAN and onboard Intel Wi-Fi 6 + Bluetooth 5.2. The board also arrives with Ultra-Fast USB 3.2 Gen2x2 20Gbps Type-C connectives and has ARGB and RGB headers. For troubleshooting, E.Z. Debug LED also exists on the motherboard. Another configuration comprises 7.1-Channel High-Definition Audio (Realtek ALC1200 Codec), Optical S/PDIF OUT, Integrated I/O Shield, Pump Fan Support, RAID 0/1/5/10 Support, and 2-Way AMD CrossFire Support. Display output ports comprise HDMI 2.1 and DisplayPort 1.4. The motherboard look is exclusive, and it is a little bit bulky as per its size. The motherboard also offers a good look with a black PCB and Silver colored heatsinks. Inclusively, a great low-priced feature-rich, and performance-oriented B660 motherboard is appropriate for constructing all kinds of systems.

Read Full review of MSI B660 Mortal WiFi

MSI MAG B660M MORTAR WIFI DDR4 Specifications

Socket Type	LGA 1700
Form Factor	Micro-ATX
Chipset	Intel B660
Processor support	Supports 12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
RAM support	DDR4 4800+(OC) MHz, up to 128 GB, Dual Channel
Slots	DIMM x 4, PCIe x16 x 2, PCIe x1 x 1 , M.2 x 2
Ports	SATA 6Gb/s x 4, USB 3.2 Gen2x2 20Gbps Type-C x 1, USB 3.2 Gen 2 Type-A x 1, USB 3.2 Gen 1 x 4, USB 2.0 x 4
Features	7.1-Channel High Definition Audio, Supports 2-Way AMD CrossFire, RGB & ARGB Connectors, Optical S/PDIF OUT, 2.5G LAN, Intel Wi-Fi 6 + Bluetooth 5.2, Integrated I/O Shield, VRM Heatsinks, PCIe Steel Armor, M.2 Shield Frozr, 12 + 1 +1 Duet Rail Power System, RAID 0/1/5/10 Support, UEFI BIOS
Display Output	HDMI 2.1 x 1, DisplayPort 1.4 x 1

---

Best ATX B660 Motherboard

We have figured out the best B660 Motherboards in the ATX form factor. These motherboards provide extra expansion slots and ports and have been manufactured with extra features.

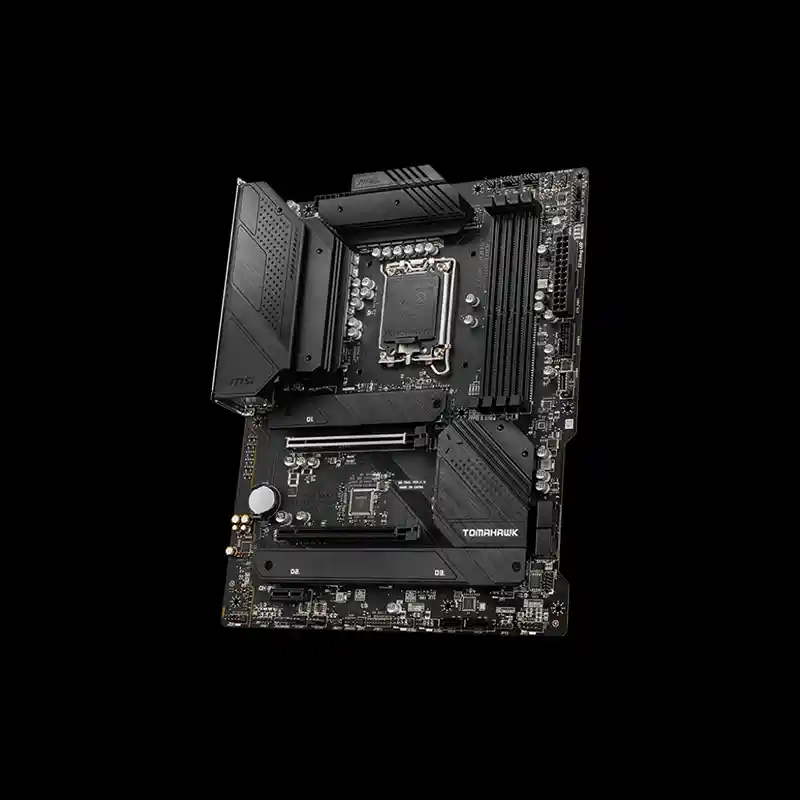

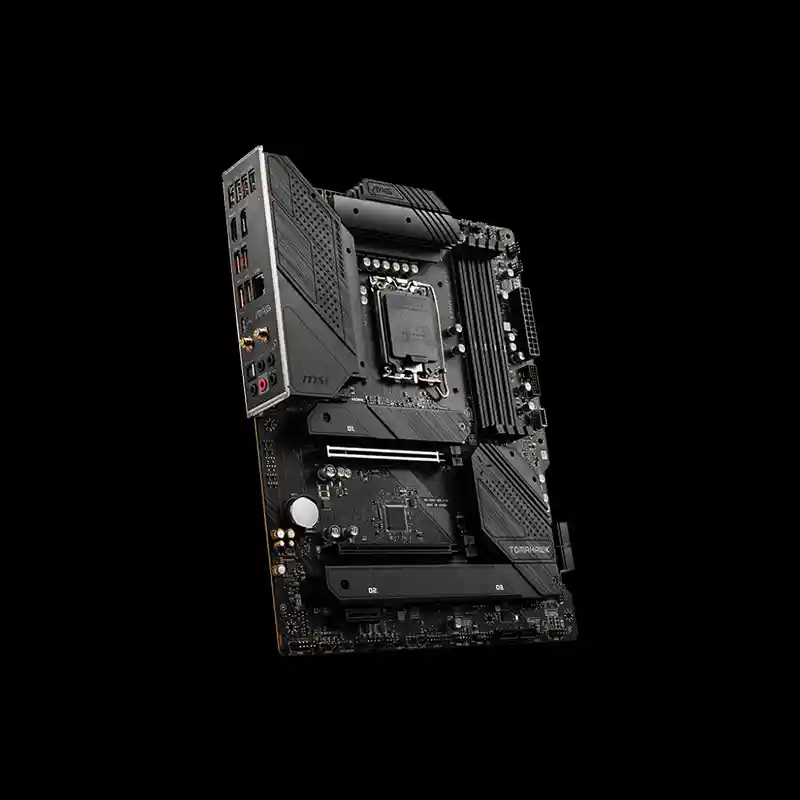

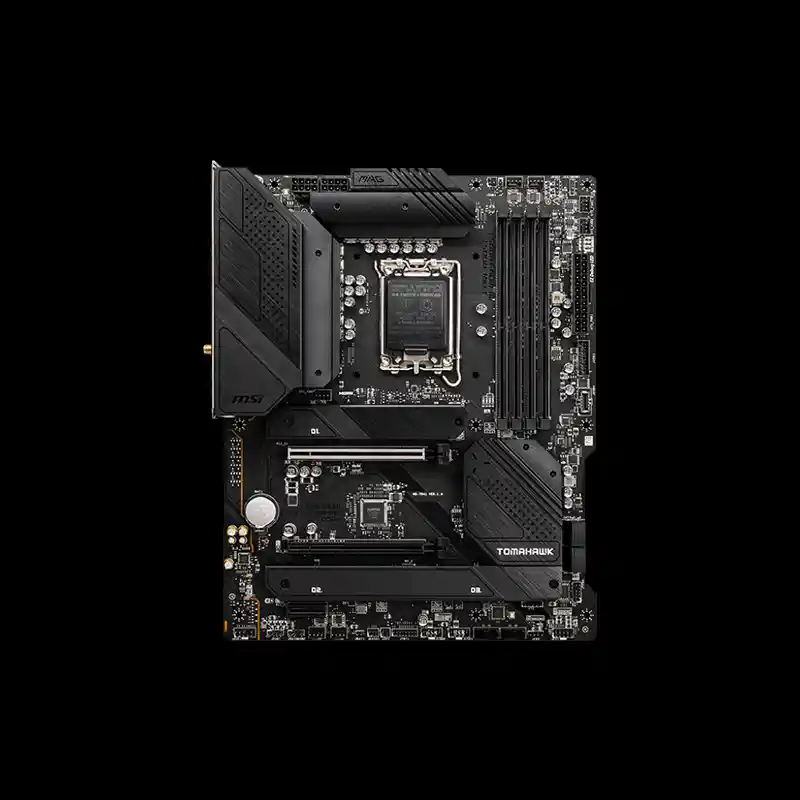

2. MSI MAG B660 TOMAHAWK WiFi DDR4

MSI MAG B660 TOMAHAWK WIFI DDR4 can be the superior version of the MSI MAG B660M MORTAR WIFI DDR4 that comes with extra slots and ports. It is simply one of the best B660 motherboards in the ATX form factor. This motherboard contains a great manufacturing quality and gives a satisfactory performance, and it contains many additional features. It supports DDR4 4800+(O.C.) MHz and up to 128 GB capacity. For graphics cards, the motherboard comes up with two PCIe x16 slots where the primary slot is PCI-Express Gen4 and works at full x16 bandwidth, and it is also steel armor protected. Furthermore, the motherboard supports 2-Way AMD CrossFire for supported AMD graphics cards. For ultra-fast NVMe storage, the motherboard comes with three M.2 PCIe 4.0 slots and has heatsinks for chilling.

The motherboard uses a 12 + 1 +1 DUET RAIL POWER SYSTEM, which means there are 14 VRM Phases. The VRM unit is chilled by politely sized rough heatsinks that are black. The transmission of power on the motherboard is more than enough to run a high-end Intel 12th generation processor without creating any hurdle in the functioning of the motherboard. The network connectivity selections on the board include 2.5G LAN and Intel Wi-Fi 6 with Bluetooth 5.2. The board is also inaugurated with an ultra-fast USB3.2 Gen 2×2 20Gbps USB Type-C port and super-fast USB 3.2 Gen 2 10Gbps Type-A ports. The extra features contained by the board are 7.1-Channel High-Definition Audio (Realtek ALC1220P Codec), E.Z. Debug LED, RGB & ARGB Connectors, Optical S/PDIF Output, Integrated I/O Shield, Pump Fan Support, RAID 0/1/5/10 Support, and UEFI BIOS. The board includes one HDMI 2.1 and one DisplayPort 1.4 port for display.

Read the full review of MSI MAG B660 Tomahawk WiFi DDR4

MSI MAG B660 TOMAHAWK WIFI DDR4 Specifications

Socket Type	LGA 1700
Form Factor	ATX
Chipset	Intel B660
Processor support	Supports 12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
RAM support	DDR4 4800+(OC) MHz, up to 128 GB, Dual Channel
Slots	DIMM x 4, PCIe x16 x 2, PCIe x1  x 1, M.2 x 3
Ports	SATA 6Gb/s x 4, USB3.2 Gen 2×2 20Gbps port (Type-C) x 1, USB 3.2 Gen 2 10Gbps ports x 5, USB 3.2 Gen 1 5Gbps Type-A ports x 2, USB 2.0 ports x 8
Features	7.1-Channel High Definition Audio (Realtek ALC1220P Codec), Supports, EZ Debug LED, RGB & ARGB Connectors, Optical S/PDIF Output, 2.5G LAN, Intel Wi-Fi 6 + Bluetooth 5.2, Integrated I/O Shield, VRM Heatsinks, PCIe Steel Armor, M.2 Shield Frozr, Pump Fan Support, 12 + 1 +1 DUET RAIL POWER SYSTEM, RAID 0/1/5/10 Support, UEFI BIOS
Display Output	HDMI 2.1 x 1, DisplayPort 1.4 x 1

---

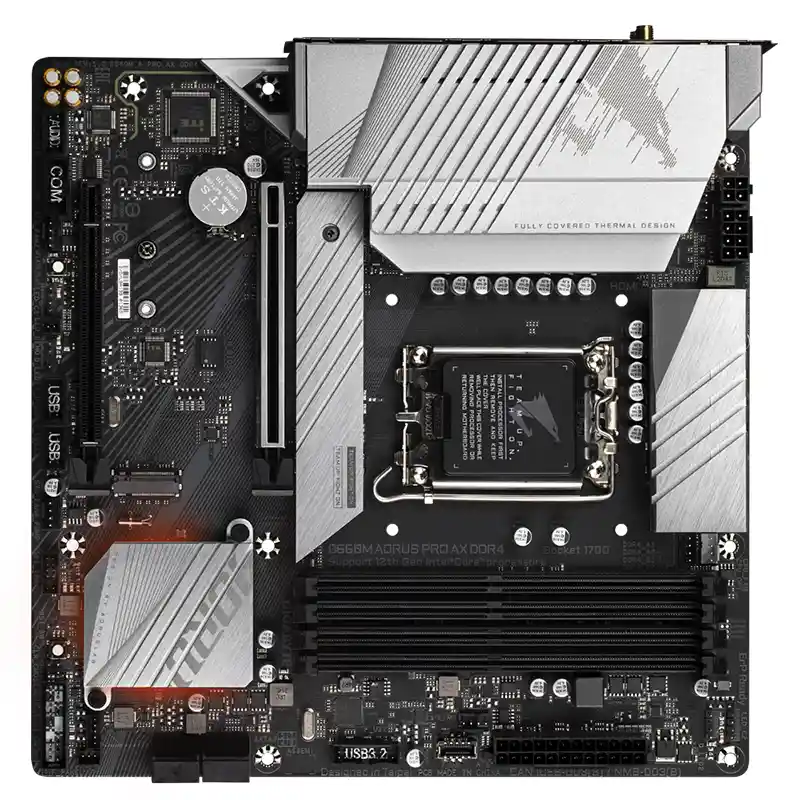

3. GIGABYTE B660M AORUS PRO AX DDR4

Another good thing about the typical B660 motherboard is that its cost is similar to the prior discussed MSI MAG B660M MORTAR WIFI DDR4. GIGABYTE B660M AORUS PRO AX DDR4 is also a Micro-ATX form factor motherboard and can easily fit in micro-PC cabinets. The motherboard contains many features and has a great performance level at this cost. It came up with two PCIe x16 slots where the top key slot is PCIe Gen4 (x16) ready and becomes protected by steel armor. For NVMe SSDs, the board comes with two M.2 slots that are PCIe 4.0 ready and come with heatsinks connected for chilling. The motherboard supports DDR4 5333(O.C.) RAM and a maximum of 128GB capacity.

The board uses a 12+1+1 Twin Hybrid Digital VRM structure and contains a big heatsink connected over the VRM. The 12 power phases for VCore use 6+6 stages with similar power structures to confirm maximum Turbo Enhancement and Constancy during higher and constant loads. The power supply is enough even for a high-end Intel 12th generation processor, but the board does not support overclocking, so it is impossible within this motherboard. The connectivity selections include 2.5G LAN and Intel WIFI 6 802.11ax + BT 5.2 for networking and USB 3.2 Gen2x2 20Gbps Type-C and USB 3.2 Gen 2 10Gbps Type-A for super-fast data transmission for devices. In addition, the motherboard comes with RGB Illumination and supports RGB Fusion 2.0. A projecting feature of the board is the Q-Flash Plus Update BIOS button that permits the user to flash BIOS without connecting the CPU, Memory, and Graphics Card. Further characteristics contain 7.1-Channel High-Definition Audio, Optical S/PDIF OUT, RGB & ARGB Connectors, Smart Fan 6, SATA RAID 0/1/5/10 Support, and Integrated I/O Shield. Display connectivity choices include HDMI 2.1 and DisplayPort 1.4 ports.

GIGABYTE B660M AORUS PRO AX DDR4 Specifications

Socket Type	LGA 1700
Form Factor	Micro-ATX
Chipset	Intel B660
Processor support	Supports 12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
RAM support	DDR4 5333(O.C.), up to 128 GB, Dual Channel
Slots	DIMM x 4, PCIe x16 x 2, M.2 x 2
Ports	SATA 6Gb/s x 4, USB 3.2 Gen2x2 20Gbps Type-C x 1, USB 3.2 Gen 2 10Gbps Type-A x 3, USB 2.0 x 4
Features	7.1-Channel High Definition Audio, Supports 2-Way AMD CrossFire, RGB Fusion 2.0 Support, RGB & ARGB Connectors, Optical S/PDIF OUT, 2.5G LAN, Intel Wi-Fi 6 + Bluetooth 5.2, Integrated I/O Shield, VRM Heatsinks, Ultra Durable PCIe Armor, M.2 Thermal Guard, 12+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS, RAID 0/1/5/10 Support, Q-Flash Plus Update BIOS Button, Smart Fan 6, UEFI BIOS
Display Output	HDMI 2.1 x 1, DisplayPort 1.4 x 1

---

4. ASUS TUF GAMING B660M-PLUS WIFI D4

Do you want a budget-friendly B660 motherboard that supports PCI-Express 5.0? Then the best choice is ASUS TUF GAMING B660M-PLUS WIFI D4, and it is the best answer to your question. It is also a Micro-ATX form factor motherboard and proposes numerous features, and carries constant performance. The motherboard features two PCIe x16 for graphics cards. The first or primary slot in the motherboard is PCIe 5.0 x16 and is covered by steel armor. Its configuration and structure support bulky graphic cards. For NVMe storage, the card comes with two PCIe 4.0 x4 M.2 slots, but only the upper M.2 slot comes with a heatsink connected. The board supports DDR4 5333(O.C.) RAM and up to 128GB capacity in total.

The VRM features 10+1 DrMOS power steps and has decently large VRM heatsinks connected for chilling. The power supply is more than enough to support even a high-end Intel 12th generation processor with a constant high load. The motherboard comes with RGB illumination, and for network connectivity, the board includes 2.5G Ethernet and Intel Wi-Fi 6 with Bluetooth 5.2. USB 3.2 Gen2x2 20Gbps Type-C ports for super-fast general connectivity and USB 3.2 Gen 2 10Gbps Type-A ports are present. Moreover, additional features contained by the motherboard are a Thunderbolt header, Integrated I/O Shield, 7.1 Channel H.D. Audio, S/PDIF out port, RAID 0/1/5/10 Support, ARGB & RGB Headers, Hybrid Fan Headers, and UEFI BIOS. Display connectivity selections-comprise of one DisplayPort 1.4 port and an HDMI 2.1 port.

ASUS TUF GAMING B660M-PLUS WIFI D4 Specifications

Socket Type	LGA 1700
Form Factor	Micro-ATX
Chipset	Intel B660
Processor support	Supports 12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
RAM support	DDR4 5333(O.C.), up to 128 GB, Dual Channel
Slots	DIMM x 4, PCIe x16 x 2, PCIe x1 x 1, M.2 x 2
Ports	SATA 6Gb/s x 4, USB 3.2 Gen2x2 20Gbps Type-C x 1, USB 3.2 Gen 2 10Gbps Type-A x 4, USB 3.2 Gen 1 x 1, USB 2.0 x 2
Features	7.1 Channel HD Audio, ASUS SafeSlot, M.2 Heatsink, 2.5G Ethernet, Intel Wi-Fi 6 + BT 5.2, Thunderbolt header, ARGB & RGB Headers, Asus Aura Sync RGB Lighting, 10+1 DrMOS power stages VRM Design, VRM Heatsinks, Hybrid Fan Headers, Pre-built Integrated I/O Shield, S/PDIF out port, RAID 0/1/5/10 Support, UEFI BIOS
Display Output	HDMI 2.1 x 1, DisplayPort 1.4 x 1

---

Best Entry Level B660 Motherboard

Here are the best entry-level budget B660 motherboards for Intel 12th Generation Alder Lake processors.

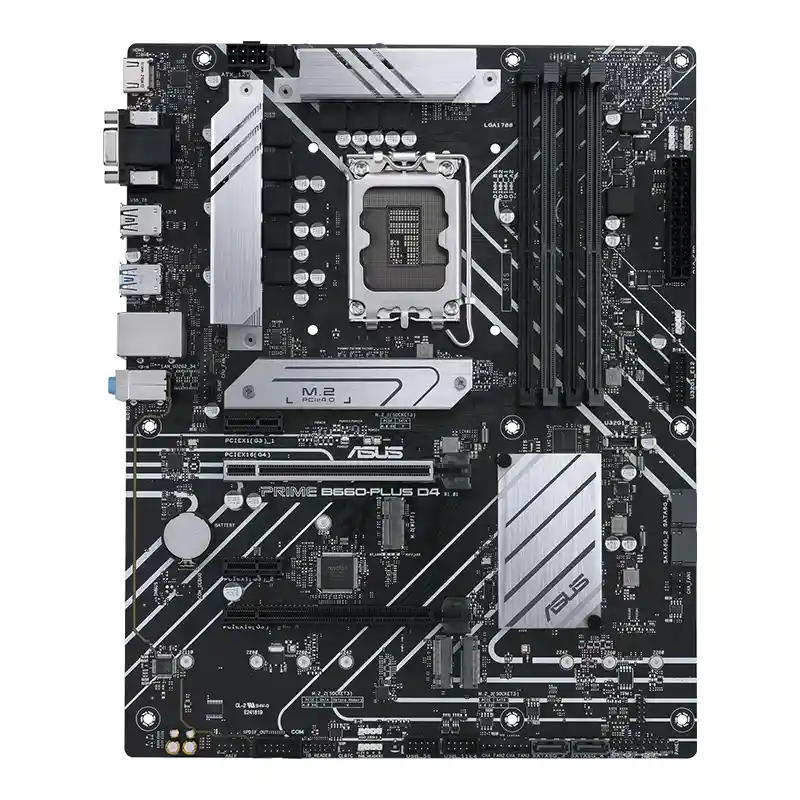

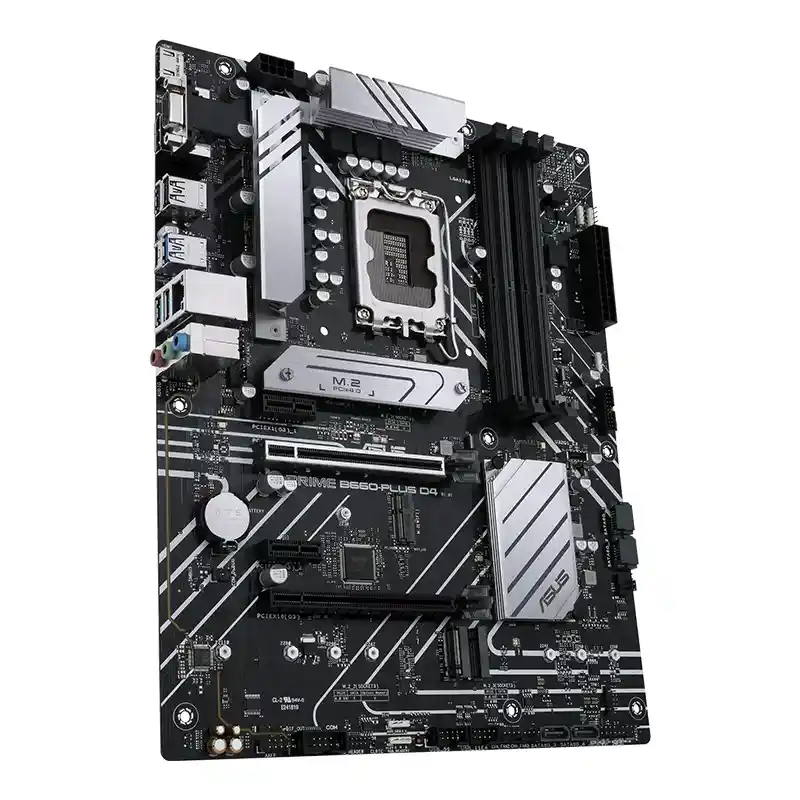

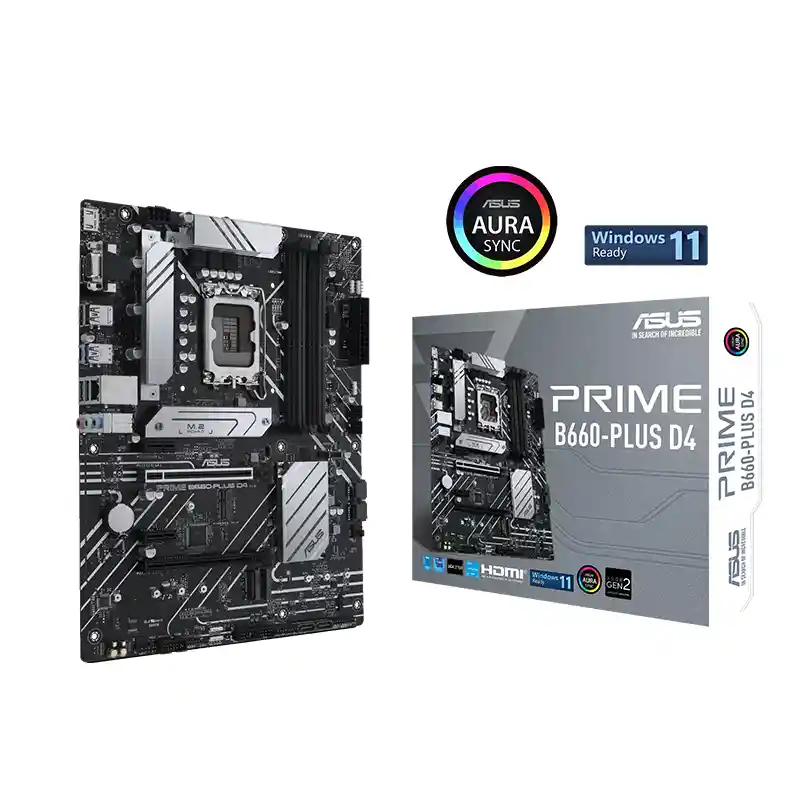

5. ASUS Prime B660-Plus D4

ASUS PRIME B660-PLUS D4 is one of the best options available; you can go with it if you seek a good entry-level B660 motherboard for your budget or a typical Intel 12th generation Core or Celeron processor. It is an ATX form factor board and drives with all the basic structures you need to set up a budget gaming or work PC.

The motherboard comes in three PCIe x16 slots; the important one is a PCIe Gen4 x16 slot, and it is protected by stainless steel that supports heavy graphics cards without detrimental to the board and avoids graphics card slumping. For NVMe SSDs, the board comes in three M.2 niches, and all of them are PCI-Express 4.0 (two support PCIe 4.0 x4 and one PCIe 4.0 x2). The upper M.2 niche drives with a heatsink connected for maintaining the NVMe cool during continuous operation. The board supports DDR4 5066 (O.C.) RAM and up to 128GB capacity. The supply of power on the board is usual, and it drives with 8 Phase VRM structure.

Attractive essential heatsinks chill the VRM segment because it is necessary to have something for cooling rather than nothing. The motherboard also originates with ARGB and RGB headers and supports Asus Aura Sync RGB lighting. Besides, Thunderbolt 4 Support is also available via an onboard header. Additionally, an essential structure includes a 2.5G Ethernet/LAN, USB 3.2 Gen 2×2 (Type-C) port (supports speed up to 20Gbps), Realtek 7.1 HD Audio, Q-LED for troubleshooting, RAID Support, UEFI BIOS, and ASUS OptiMe for improved memory constancy and compatibility. Presentation connectivity selections include HDMI 2.1, DisplayPort 1.4, and VGA (D-Sub) ports.

ASUS PRIME B660-PLUS D4 Specifications

Socket Type	LGA 1700
Form Factor	ATX
Chipset	Intel B660
Processor support	Supports 12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
RAM support	DDR4 5066 (OC) up to 128 GB, Dual Channel
Slots	DIMM x 4, PCIe x16 x 2, PCIe x1 x 2 , M.2 x 3
Ports	SATA 6Gb/s x 4, USB 3.2 Gen 2×2 (Type-C) x 1, USB 3.2 Gen 2 x 2, USB 3.2 Gen 1 x 1, USB 2.0 x 2
Features	Memory Overclocking, Intel XMP Support, Realtek 7.1 HD Audio, 2.5G LAN, Asus SafeSlot, VRM Heatsinks, RGB & ARGB Headers, Asus Aura Sync RGB Support, M.2 Heatsink, Q-LED for troubleshooting, Thunderbolt 4 Support via onboard header, ASUS OptiMe, SATA RAID 0/1/5/10  Support, UEFI BIOS

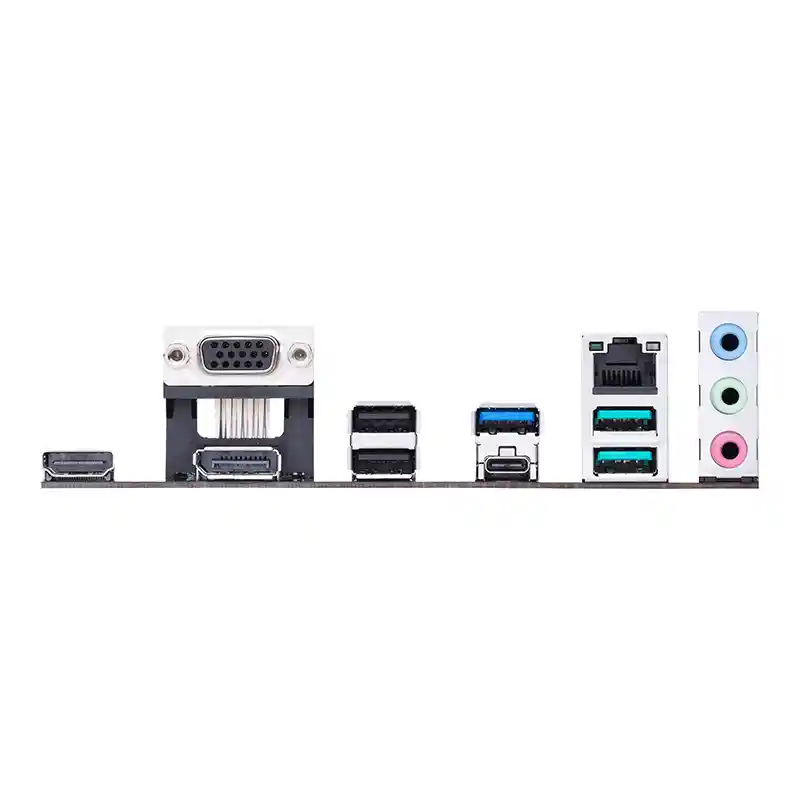

Display Output	HDMI 2.1 x 1, DisplayPort 1.4 x 1, VGA x 1
