An assumed NVIDIA GeForce RTX 4090 Ti Founders Edition graphics card cooler had been disclosed over at Chiphell Forums. The cooler may provide us with a first look at the updated Founders Edition device attributes to the next-generation Ada Lovelace GPUs.

Currently, there has been information that NVIDIA’s GeForce RTX 40 series graphics card is ready to launch in the middle of July. We are 2-3 months away from launching the next-generation schedule based on the Ada Lovelace graphics architecture.

On the rim to be both powerful & power-hungry, the GeForce RTX 40 series schedule will entail some heavy cooling. NVIDIA offers a major strength to its accessible Founders Edition device to meet the 450-600 Watt spec.

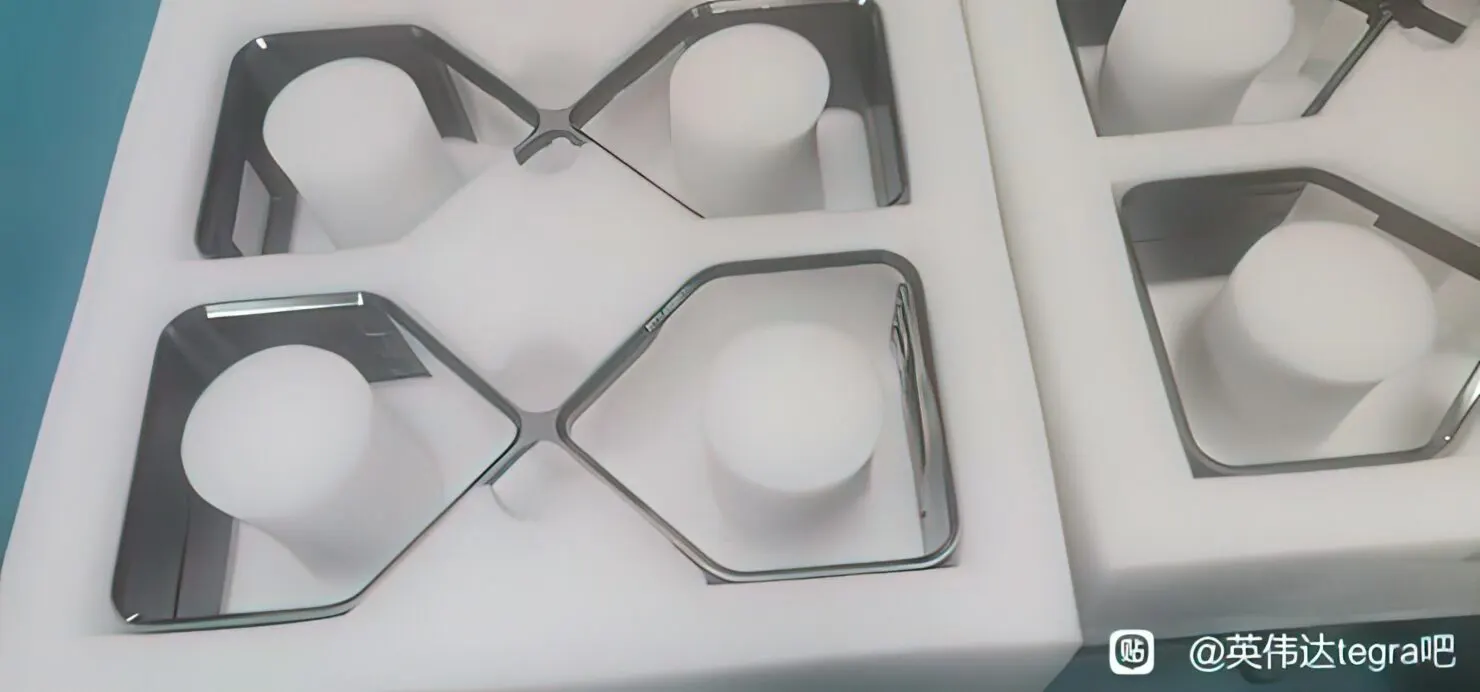

The assumed ‘GeForce RTX 4090 Ti’ pictures illustrate three different sections of the FE cooler. In the first section, we have the silver-colored metal draft set out around the heat sink to present it with a nice finish. Now, the metal plate demonstrates a small logo of the card that it is operational on. The disclosed plate advised that it will maybe go on the NVIDIA GeForce RTX 4090 Ti flagship graphics card. But, one thing to study is that the positioning of this sign has been altered from right to left. This section will only be evident on the bottom side of the graphics card, so it doesn’t mean a lot where the tag is positioned, but it looks creepy if we see it from the promotional point of view.

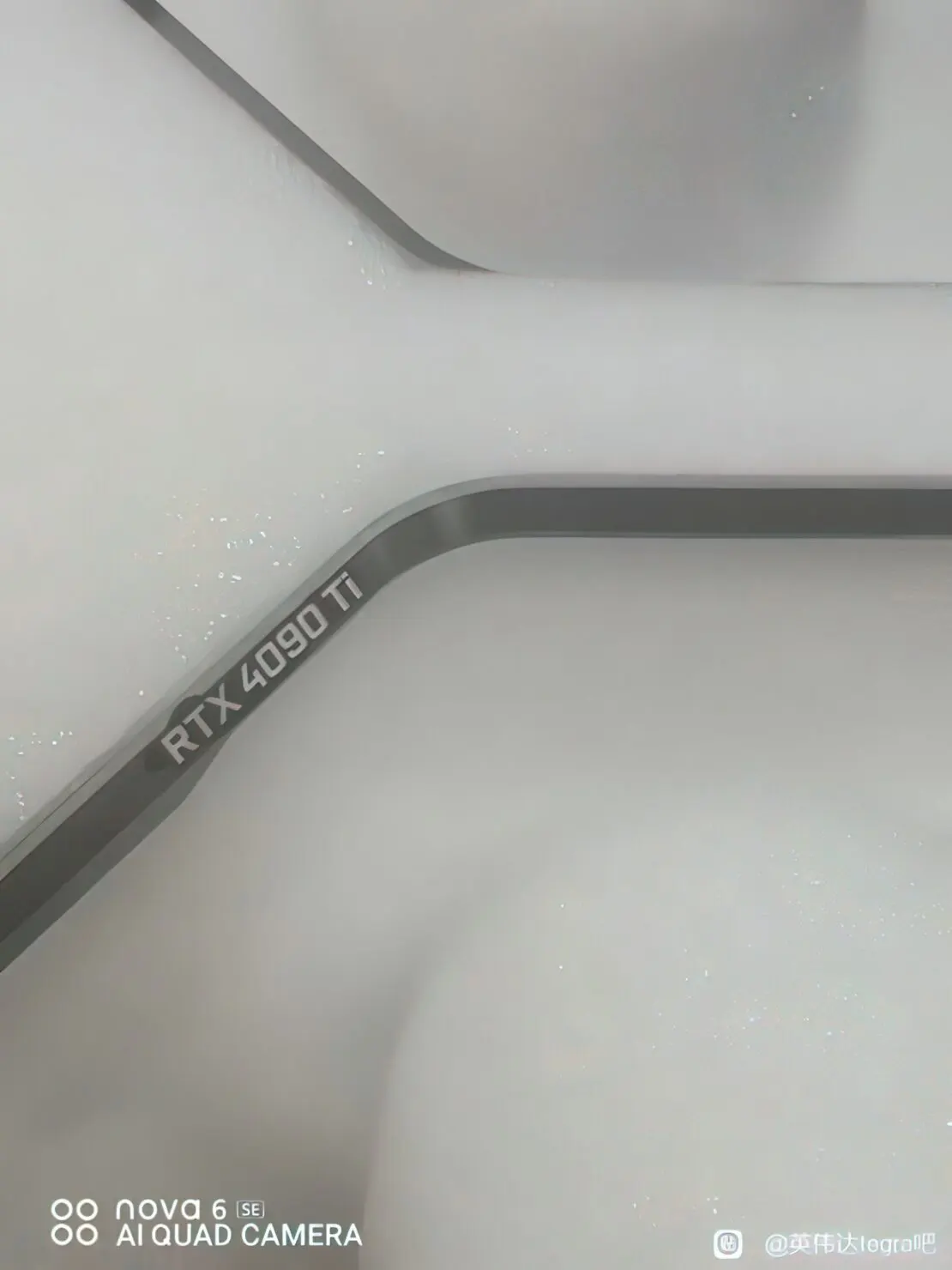

rtx 4090 ti leak image 03
RTX 4090ti leak image 03

The most appealing section is the heat sink itself. NVIDIA is currently available to operate a bigger base plate to cool the GPU, and the memory will pass away. Currently, NVIDIA utilizes thermal pads to dissolve heat from the memory expiration to the heat sink on its RTX 3090 and 3090 Ti Founders Edition graphics cards.

This new heat sink outline permits NVIDIA to cool at least twelve GDDR6X memory chips. The same configuration as the RTX 3090 Ti’s PCB is expected to be used here, with 4 GDDR6 chips on the right and left side, three on the peak, and 1 at the bottom. With NVIDIA projected to operate at higher-spectrum GDDR6X chips on its next-generation cards, the extra cooling will be crucial for the flagship AD102 parts. There is also a large aluminum heat transmitter for the VRMs and two thermal pads for various mechanisms. The heat sinks on the sides also appear to be promoted from 23 fins to 24 fins on the disclosed device.

RTX 4090ti leak image 04

We can also notice that heat channels foremost from the key heat sink to the one on the back. The heat will degenerate from the heat sink and out of the card from side to side, a similar flow during cooling devise as the accessible FE cards. With a thought, the license does look like it will be three or even four niches this time around. It remains to be seen if the RTX 4090 Ti cooler takes place to disclose much previous or if it will be part of the schedule itself.

There is only information that the RTX 4090 will be first to market, with RTX 4090 Ti will launch later on. It can be an early design for the ‘Ti’ cooler, or it is expected that NVIDIA made a few example coolers and decided to go with the ‘non-Ti’ alternative initially. The second time, this is an assumed photo of what might be the next-gen NVIDIA GeForce RTX 40 sequence cooling devise, but we cannot speak up surely, so make assumptions as a thing is going to talk about it.

Here is the explanation for the NVIDIA GeForce RTX 4090 Series Graphics Cards!

As seen with the GeForce RTX 3090 Ti, certain replicas go ahead of the 450W TBP and up to 516W. The identical is going to be the case with Ada Lovelace-based cards. Even as this will need lots of cooling, AIBs are well and ready. We will likely see the use of more hybrid-styled GPU coolers comparatively than conventional air-coolers once we go above the 600W TBP limit. It will mark a 33% raise in TBP over the RTX 3090 Ti. According to the latest rumors, NVIDIA is predictably announcing its next-generation GeForce RTX 40 series by the middle of July, which means we are getting a new generation of cards in early Q3 2022.

The AD102 ‘Ada Lovelace’ GPU is estimated to have the quality of 144 SMs, a 71% boost over the presented GA102 GPU, and house a huge 18,432 CUDA core count. The GeForce RTX 4090’s GPU SKU is supposed to quality 16,128 CUDA cores, a 50% increase in core count over the RTX 3090 but 14% inferior cores than the full-fat AD102 arrangement, which may turn into up later as the RTX 4090 Ti. This generation has the same situation where the ‘Ti’ alternative of the 3090 got the full-fat GA102 GPU, and the non-Ti alternative, while launched previously, came with a decreased configuration.

RTX 4090ti image 05

The Ada Lovelace GPUs will also attribute improved L2 cache sizes if we include SM counts. Starting with the AD102 GPU, the flagship is prepared with up to 96 MB of L2 cache, an insane 16x add to over the 6 MB L2 cache attributes on GA102. This supply still is not as large as the Infinity supply featured on AMD’s rDNA cards, .but still, it is a major jump for NVIDIA’s graphics cards.

The NVIDIA GeForce RTX 4090 graphics card can rock 24 GB of GDDR6X memory regulating at 21 Gbps across a 384-bit bus interface and providing over 1.0 TB/s bandwidth. The recent information tends down the largely TDP statistics to 450W, which means that the RTX 4090 may not go at the extreme with the clocks that the full-fat alternative with a 600W is predictable.

NVIDIA GeForce RTX 40 Series Graphics Card Lineup (Rumored):

GRAPHICS CARDGPUPCB VARIANTSM UNITS / CORESMEMORY / BUSMEMORY CLOCK / BANDWIDTHTGPPOWER CONNECTORS
NVIDIA GeForce RTX 4090 TiAD102-350?TBD144 / 18432?48 GB / 384-bit24 Gbps / 1.15 TB/s~600W1x 16-pin
NVIDIA GeForce RTX 4090AD102-300?PG137/139 SKU330126 / 16128?24 GB / 384-bit21 Gbps / 1.00 TB/s~450W1x 16-pin
NVIDIA GeForce RTX 4080AD103-300?TBD>84 / 10752?16 GB / 256-bit21 Gbps / 672 GB/s~350W1x 16-pin
NVIDIA GeForce RTX 4070AD104-400?PG141-310 SKU341>60 / 768012 GB / 192-bit18 Gbps / 432 GB/s~300W1x 16-pin

News Source: wccftech.com
