AMD has publicly launched its brand-new Radeon RX 6950 XT, RX 6750 XT, and RX 6650 XT graphics cards as a part of the RDNA 2 refresh. These new graphics cards carry a little better performance at a little higher price.
The AMD Radeon RX 6000 Refresh listing is ended with three cards, the Radeon RX 6950 XT, the RX 6750 XT, and the RX 6650 XT. In the article, we have covered everything from mandatory facts to its performance over the last couple of weeks so that this launch will surprise the graphic card users and our readers. As per expectation, there are some changes you will find in the Radeon RX 6000 Refresh that adds-
- To some extent Better GPU Clocks
- Better Memory Clocks rather than the previous generation
- Somewhat Higher TDPs
- Higher Power/Clock Limits comparatively
- Various Custom Designs you can look
- Far Better Availability
- Possess a little bit higher cost
The AMD Radeon RX 6950 XT gets the position above the Radeon RX 6900 XT, and the Radeon RX 6750 XT secured place above the Radeon RX 6700 XT, and the Radeon RX 6650 XT found rank above the Radeon RX 6600 XT. Think about it as AMD’s own ‘SUPER’ refresh but without major upgrades. The listing is anticipated to increase performance to 5-to 10%, and memory will play a massive role in realizing these goals. Again, the new listing will contain new features that include-
- AMD Radeon RX 6950 XT ($1099 US)
- AMD Radeon RX 6750 XT ($549 US)
- AMD Radeon RX 6650 XT ($399 US)

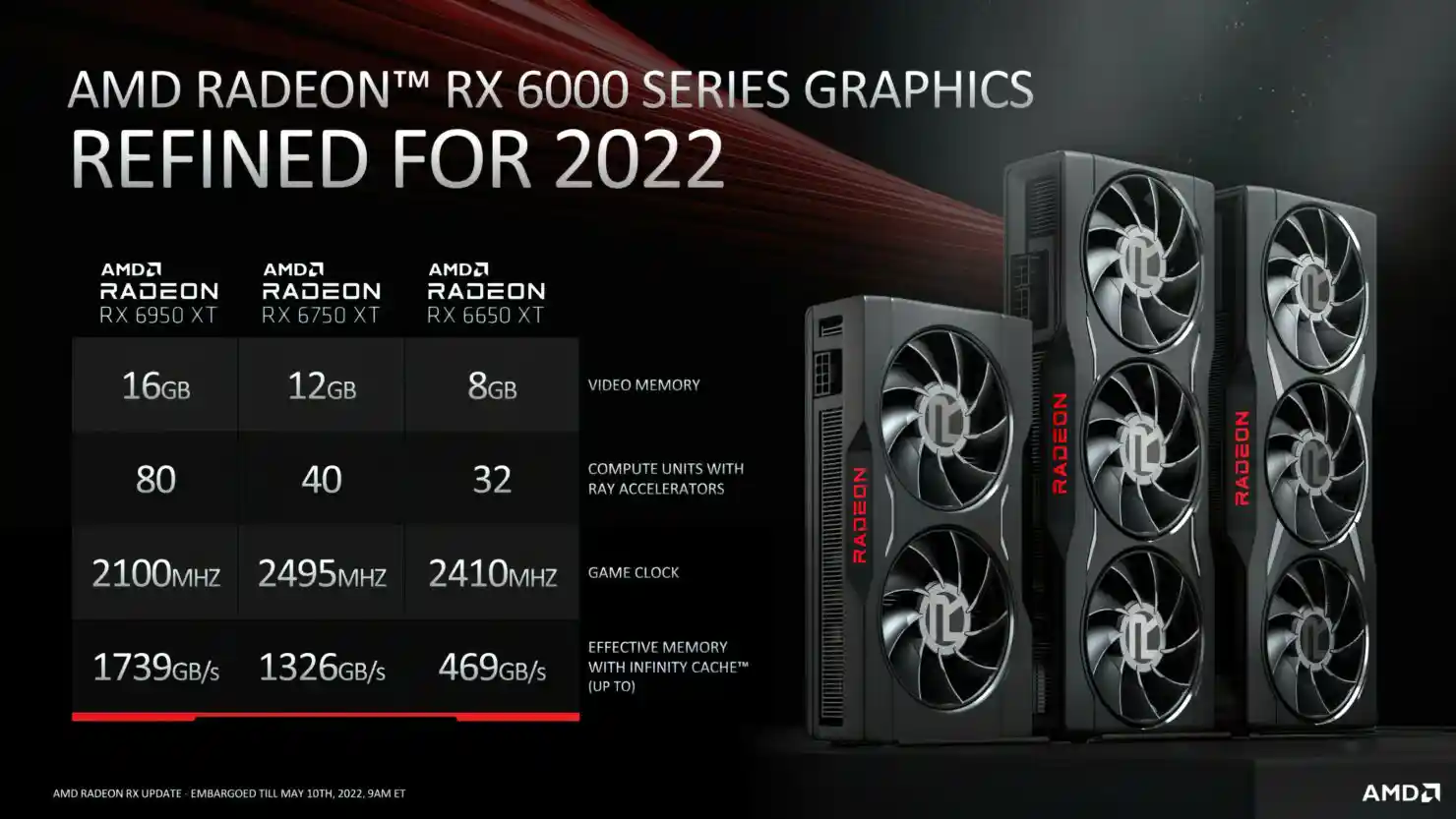

![amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 01](https://dtechted.com/wp-content/uploads/2022/05/AMD-Radeon-RX-6950-XT-RX-6750-XT-RX-6650-XT-Graphics-Cards-Launch-image-01-1024x674.webp)
After studying the listing features, we are moving toward individual specs offered by each graphic card.
Navi 21 KXTX Powered Flagship AMD Radeon RX 6950 XT GPU
The AMD Radeon RX 6950 XT comes packed with the Navi 21 KXTX GPU in its completely aided die configuration, including 80 Compute Units or 5120 SPs. The card also includes 16 GB of GDDR6 memory across a 256-bit bus interface. There are also 80 Ray accelerators for raytracing enablement on the visual cards. The graphics card functions at a GPU clock of 2.1 GHz and a lift clock of 2310 MHz which enhances up to 4% over the RX 6900 XT reference model, clocked at 2015 and 2250 MHz, separately. The graphics card will offer 23.65 TFLOPs of the highest FP32 performance.
Apart from the standard memory, the Radeon RX 6900 XT graphics card will also feature 128 MB of endless cache on the GPU die. The supply helps to boost bandwidth for higher performance at resolutions beyond 1080p HD. The 128 MB Infinity supply increases the standard 512 GB/s bandwidth by 3x, carrying an operative bandwidth of up to 1.728.2 TB/s. The graphics card will feature 18 Gbps GDDR6 memory dies, carrying an effective bandwidth of 576 GB/s. The card will rock a 335W TBP.
- amd radeon rx 6950xt compare image 01
- amd radeon rx 6950xt compare image 02

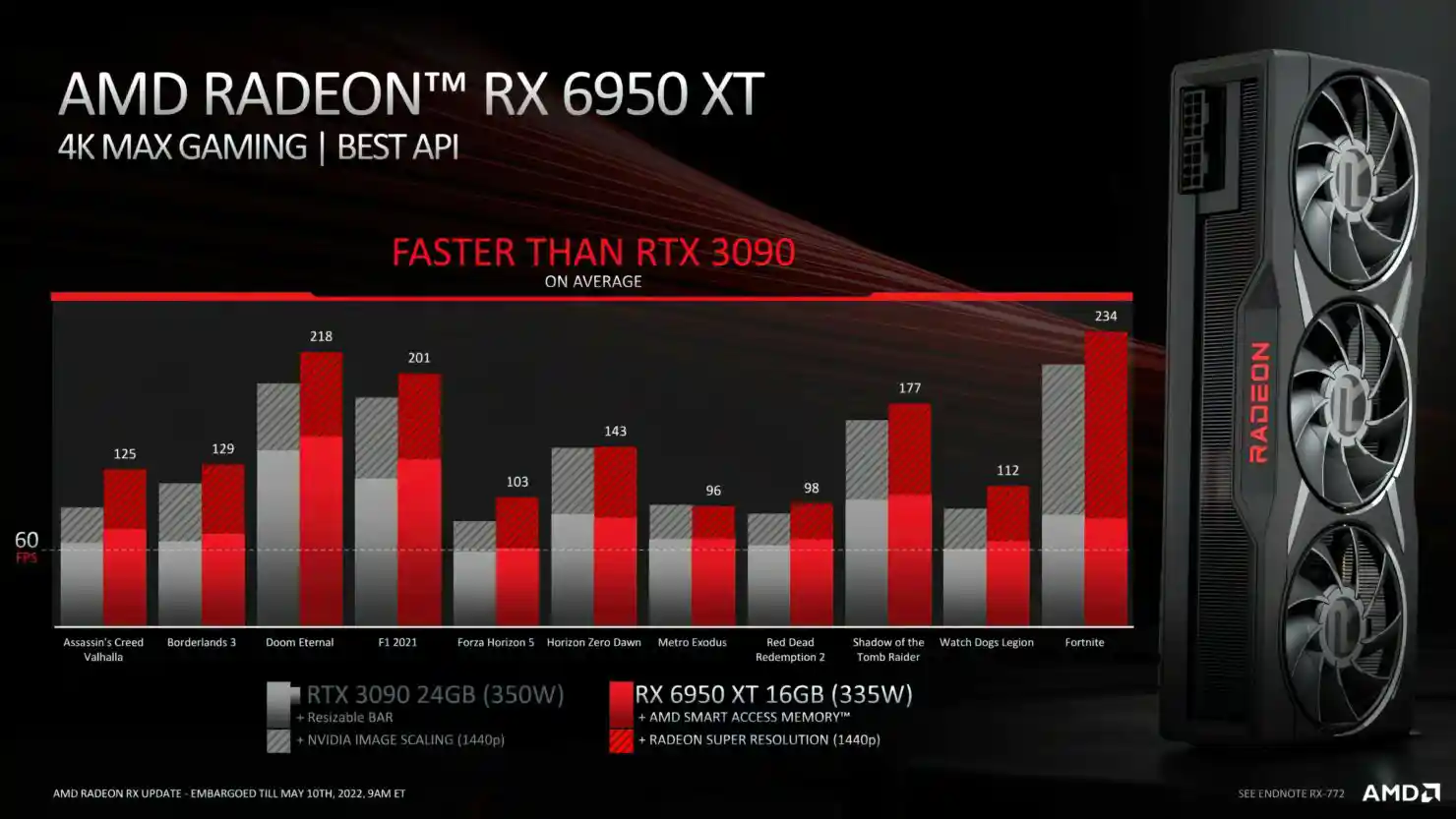

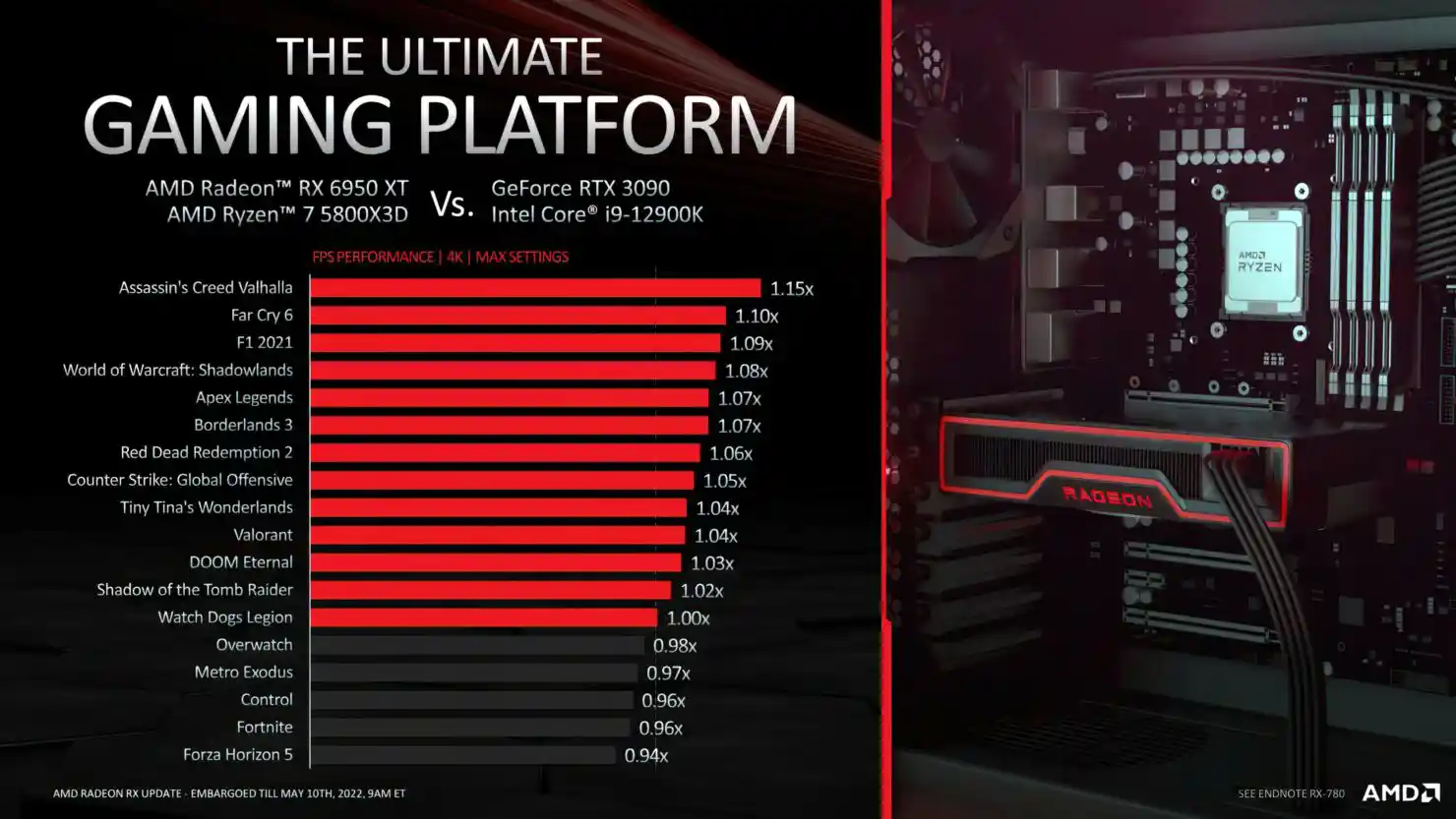

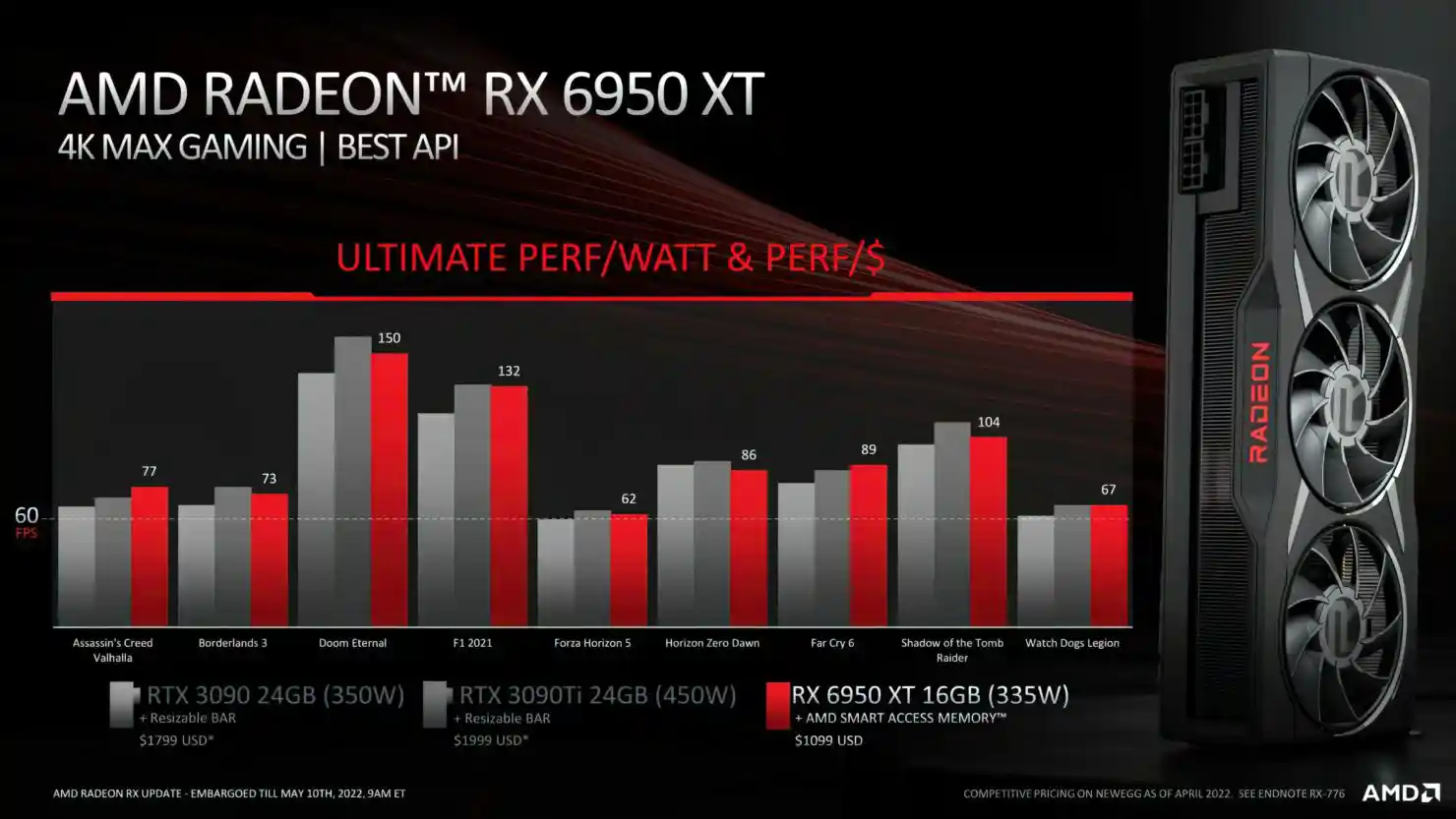

As for the design of the graphics card, it will ship in the same Midnight Black flavor as the 6800 XT Limited Edition with a 2.5-slot cooler, a huge triple-fan cooled heatsink, and power provided by 2 8-pin connectors. Regarding performance, the Radeon RX 6950 XT should offer 4-5% better GPU performance than the RX 6900 XT and around 10% better performance than the RTX 3090, which makes it around as fast as the RTX 3090 Ti.
The Fastest Navi 22 KXT Mainstream – AMD Radeon RX 6750 XT
The AMD Radeon RX 6750 XT filters the Navi 22 KXT GPU and features 40 compute units equal to 2560 stream processors. The graphic chip also includes 40 Ray accelerators for raytracing abilities on the RDNA 2-based GPUs. The graphics card will come clocked at 2495 MHz game and 2600 boost clocks, within a rise of up to 3% versus the 2424 MHz game and 2581 boost clocks of the RX 6700 XT, individually. The graphic card will offer 13.31 TFLOPs of the highest FP32 performance.
The graphics card includes a 12 GB GDDR6 memory buffer and a 192-bit bus interface. AMD will be using 18 Gbps dies which would net a total bandwidth of 432 GB/s for the cards. The GPU, moreover, packs 96 MB of the endless reserve. The effective bandwidth is rated at 1326 GB/s with the Infinity Cache, an increase of 3.06x.
- amd radeon rx 6750 xt compare image 02
- amd radeon rx 6750 xt compare image 02

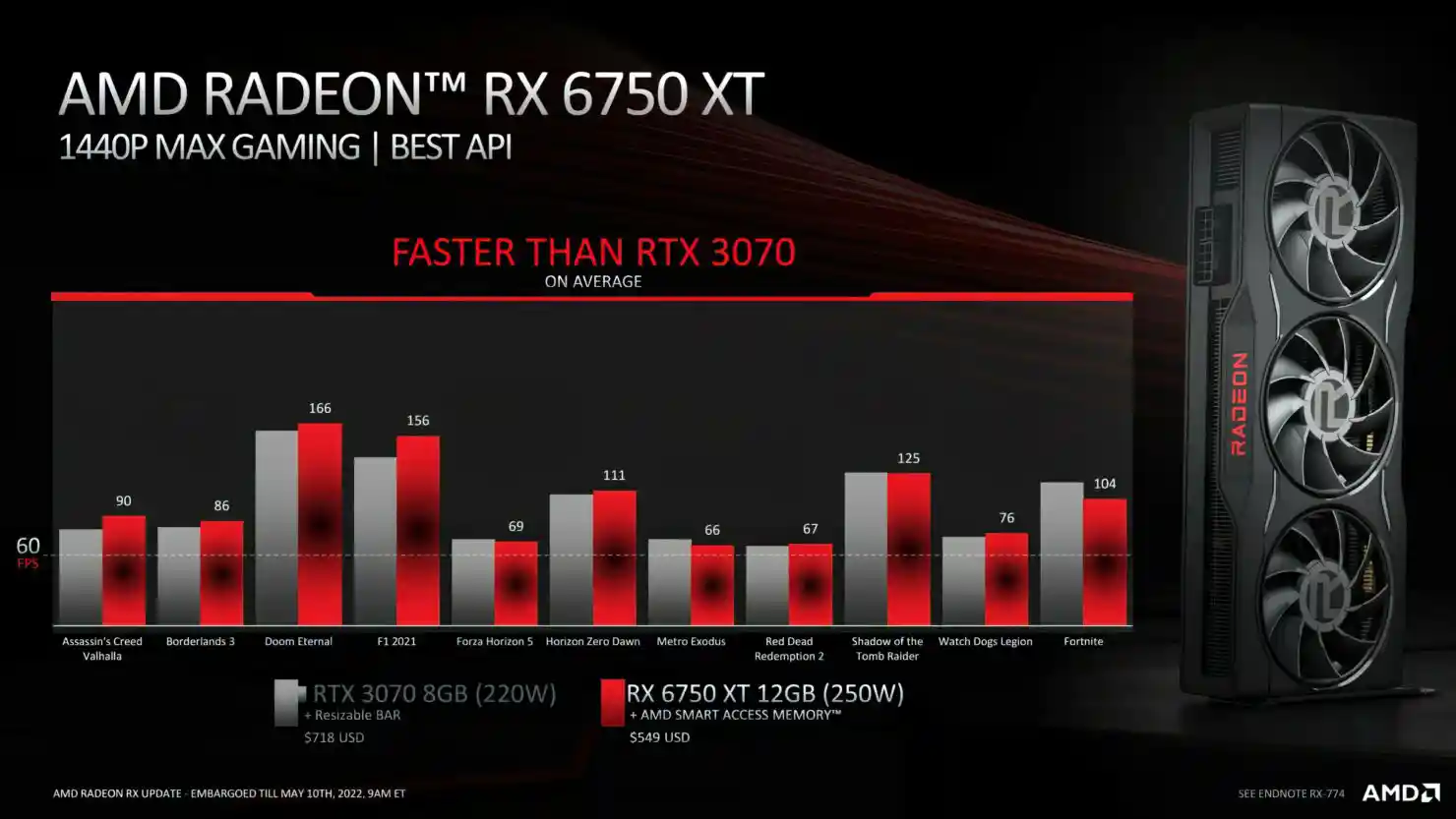

The GPU Gen 4.0 is fully submissive. As for the TBP, the card contains features of a 250W design. IT is exclusively due to higher clock memory dies leading to increased power consumption. The graphic card gets a brand-new triple-fan Midnight black reference design with a dual-slot design and current supply by an 8+6 pin connector configuration. Considering its performance, the RX 6750 XT will be around 7% faster than the RX 6700 XT with the RTX 3070 graphics card.
Navi 23 KXT Powered Budget Delight – AMD Radeon RX 6650 XT
We have the AMD Radeon RX 6600 XT graphics card powered by the Navi 23 KXT GPU, which introduces 11.06 billion transistors packed within a 237mm2 die. The Navi 23 GPU includes 32 total units with 2048 stream processors. The card is also packed with a 32 MB Infinity supply and features an 8 GB GDDR6 memory capacity across a 128-bit wide bus interface. Within a pin speed of 17.5 Gbps for a total bandwidth of 280 GB/s and a current memory bandwidth of up to 468.9 GB/s, an increase of up to 1.67x.
The core clock is maintained at 2410 MHz game, and 2635 MHz boost for the AMD Radeon RX 6750 XT. An increase of up to 2% over the 6700 XT that clocks in at 2359 MHz game and 2589 MHz boost clocks. The graphics card offers 10.79 TFLOPs of peak FP32 performance.
Like the Radeon RX 6600 XT, the card functions with a single 8-pin connector, and TBP got to rank at 180W, a 20W bump over the RX 6600 XT. The graphics card will get a brand-new dual-fan Midnight black reference design with a dual-slot design and current offers via a single 8-pin connector configuration. The RX 6650 XT will be just 2% quicker than the RX 6600 XT but 23% faster than the RTX 3060.
AMD RDNA 2 Desktop GPU ‘Radeon RX 6000’ Refresh – Pricing & Availability

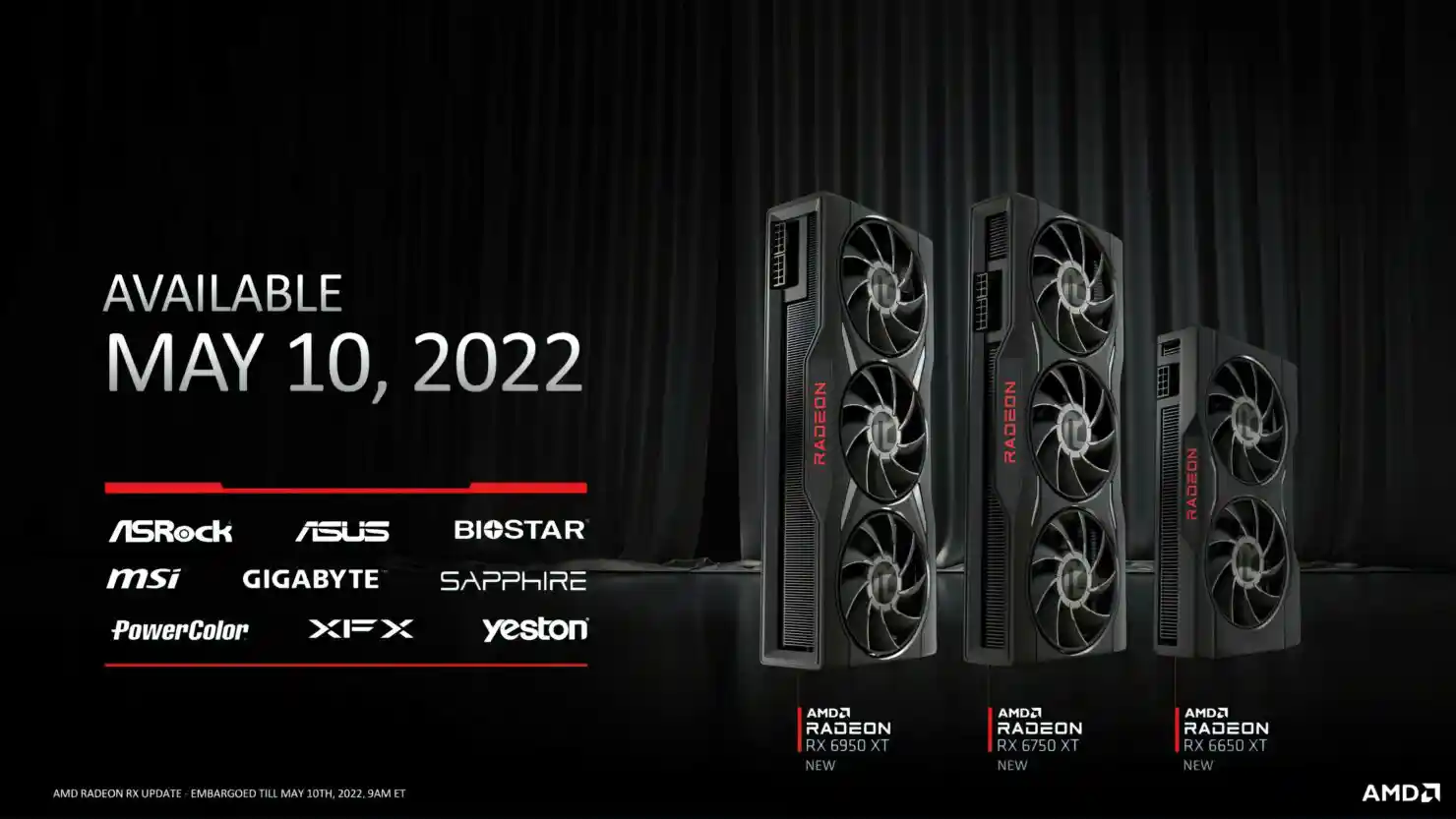

If we talk about the price, there is a small cost difference between the new AMD Radeon RX 6000 refresh cards. Today, the cards are being declared, and analyses are available for buyers to check out the efficiency of graphic cards. After introducing to the market, the graphic card hit the retail market on the same day of launch.
- amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 01
- amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 02
- amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 03
- amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 04
- amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 05
- amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 06
- amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 07
- amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 08
- amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 09
- amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 10
- amd radeon rx 6950 xt rx 6750 xt rx 6650 xt graphics cards launch image 11

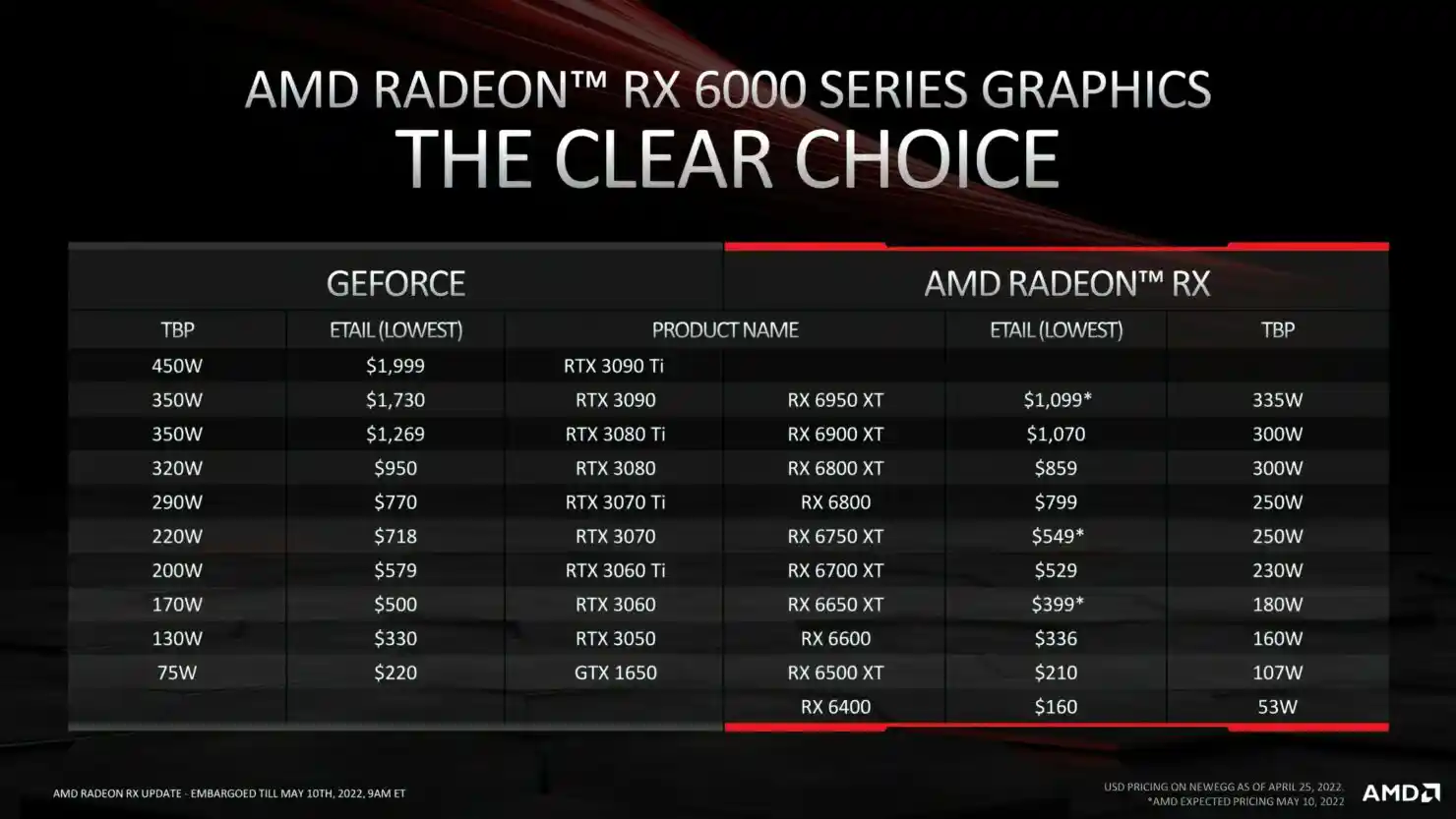

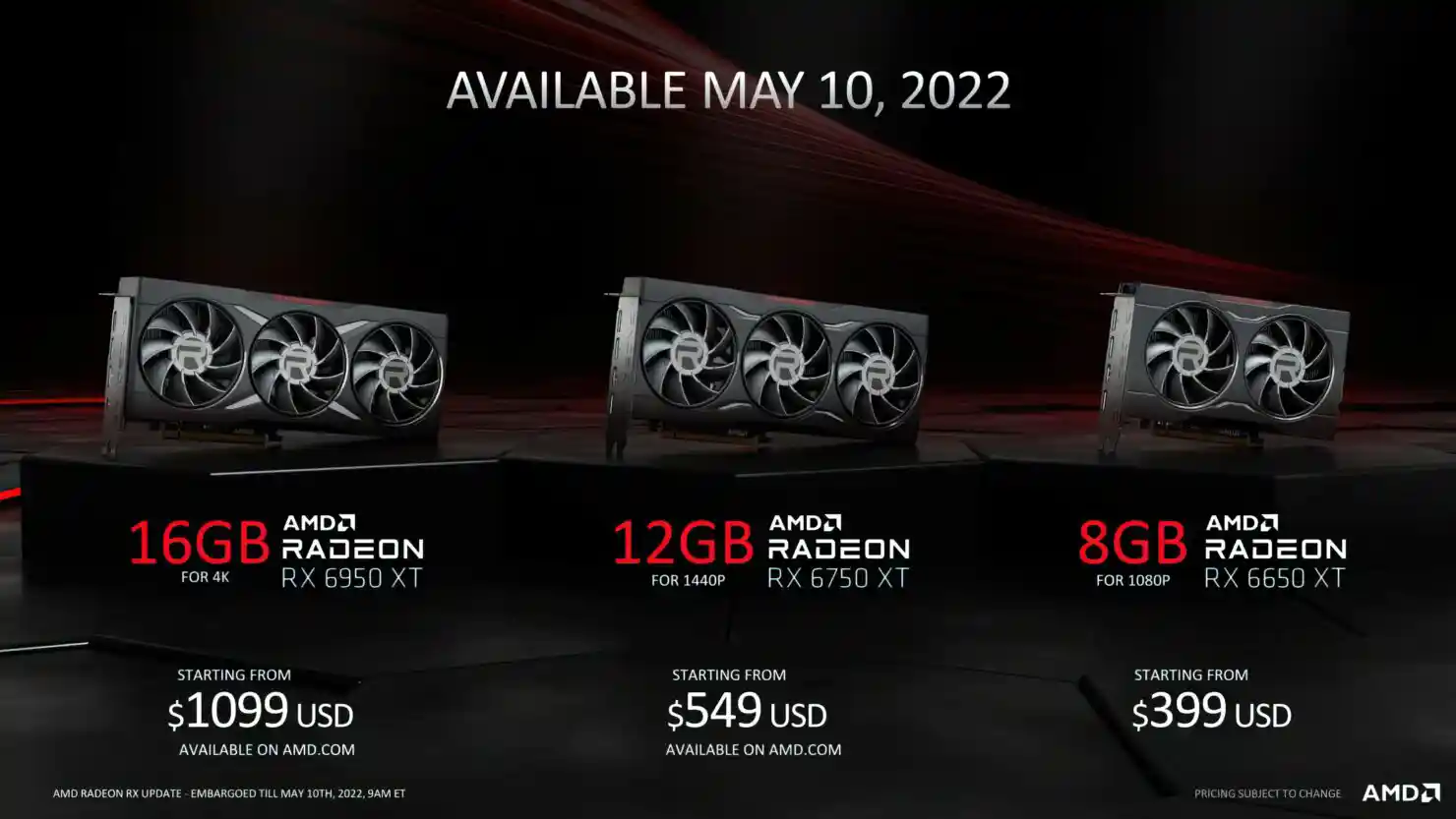

These graphic cards not only come in respect of midnight black card flavor but also get custom treatment. As per the current cost, the RX 6950 XT might hit retail for $1099 US, the RX 6750 XT at $540 US, and the RX 6650 XT at $399 US. The prices of the existing models are still unchanged, and the cost remains constant.
- Radeon RX 6950 XT vs RX 6900 XT – $1099 vs $999 US MSRP
- Radeon RX 6750 XT vs RX 6700 XT – $549 vs $479 US MSRP
- Radeon RX 6650 XT vs RX 6600 XT – $399 vs $379 US MSRP
AMD is judging those users who sought to get RX 6000 series cards at launch but are not buying them due to the many supply and pricing issues. Rather than waiting another 6-7 months for a graphics card. Users can find an advanced RX 6000 card with a little better performance, to some extent, higher pricing.
AMD Radeon RX 6000 Refresh Graphics Cards Specs:
GRAPHICS CARD | AMD RADEON RX 6950 XT | AMD RADEON RX 6900 XT | AMD RADEON RX 6750 XT | AMD RADEON RX 6700 XT | AMD RADEON RX 6650 XT | AMD RADEON RX 6600 XT |
---|---|---|---|---|---|---|
GPU | Navi 21 KXTX | Navi 21 XTX | Navi 22 KXT | Navi 22 XT | Navi 23 KXT | Navi 23 XT |
Process Node | 7nm | 7nm | 7nm | 7nm | 7nm | 7nm |
Die Size | 520mm2 | 520mm2 | 336mm2 | 336mm2 | 237mm2 | 237mm2 |
Transistors | 26.8 Billion | 26.8 Billion | 17.2 Billion | 17.2 Billion | 11.06 Billion | 11.06 Billion |
Compute Units | 80 | 80 | 40 | 40 | 32 | 32 |
Stream Processors | 5120 | 5120 | 2560 | 2560 | 2048 | 2048 |
TMUs/ROPs | 320 / 128 | 320 / 128 | 160/64 | 160/64 | 128/64 | 128/64 |
Game Clock | 2100 MHz | 2015 MHz | 2495 MHz | 2424 MHz | 2410 MHz | 2359 MHz |
Boost Clock | 2310 MHz | 2250 MHz | 2600 MHz | 2581 MHz | 2635 MHz | 2589 MHz |
FP32 TFLOPs | 23.65 TFLOPs | 23.04 TFLOPs | 13.31 TFLOPs | 13.21 TFLOPs | 10.79 TFLOPs | 10.6 TFLOPs |
Memory Size | 16 GB GDDR6 +128 MB Infinity Cache | 16 GB GDDR6 +128 MB Infinity Cache | 12 GB GDDR6 + 96 MB Infinity Cache | 12 GB GDDR6 + 96 MB Infinity Cache | 8 GB GDDR6 + 32 MB Infinity Cache | 8 GB GDDR6 + 32 MB Infinity Cache |
Memory Bus | 256-bit | 256-bit | 192-bit | 192-bit | 128-bit | 128-bit |
Memory Clock | 18 Gbps | 16 Gbps | 18 Gbps | 16 Gbps | 17.5 Gbps | 16 Gbps |
Bandwidth | 576 GB/s | 512 GB/s | 432 GB/s | 384 GB/s | 280 GB/s | 256 GB/s |
Effective Bandwidth | 1728.2 GB/s | 1664.2 GB/s | 1326 GB/s | 1278 GB/s | 468.9 GB/s | 444.9 GB/s |
TBP | 335W | 300W | 250W | 230W | 180W | 160W |
PCIe Interface | PCIe 4.0 x16 | PCIe 4.0 x16 | PCIe 4.0 x16 | PCIe 4.0 x16 | PCIe 4.0 x8 | PCIe 4.0 x8 |
Price | $1099 US | $999 US | $549 US | $479 US | $399 US | $379 US |
