The NVIDIA GeForce RTX 3090 Ti graphics card is the final graphics card that the green team will have to offer, grounded on its Ampere architecture. The card is ultimate in every sense, graphics presentation, power, pricing. It is just intended for the ultimate enthusiast gamers out there and seeing what NVIDIA has teased about this card, it’s sure going to be one of a sympathetic beast!
NVIDIA intended the GeForce RTX 3090 Ti not just for the ultimate gamer but also professional content creators too who also want to have the best graphics performance at hand to control the next-generation of AAA gaming titles with superb visuals and foolish fluidity. It’s not just the FPS that substances these days, it’s visuals, and a flatter frame rate too and this is exactly what the GeForce RTX 30 series is made to excel at.
2nd Generation RTX – The Marvels of NVIDIA Ampere Architecture
Enabling the scorching performance of the new RTX 30 Series GPUs and the NVIDIA Ampere construction are cutting-edge technologies and over two periods of graphics R&D, including:
New streaming multiprocessors:
The building block for the world’s debauched, most efficient GPU, bringing 2x the FP32 throughput of the earlier generation, and 40 Shader-TFLOPS of processing power.

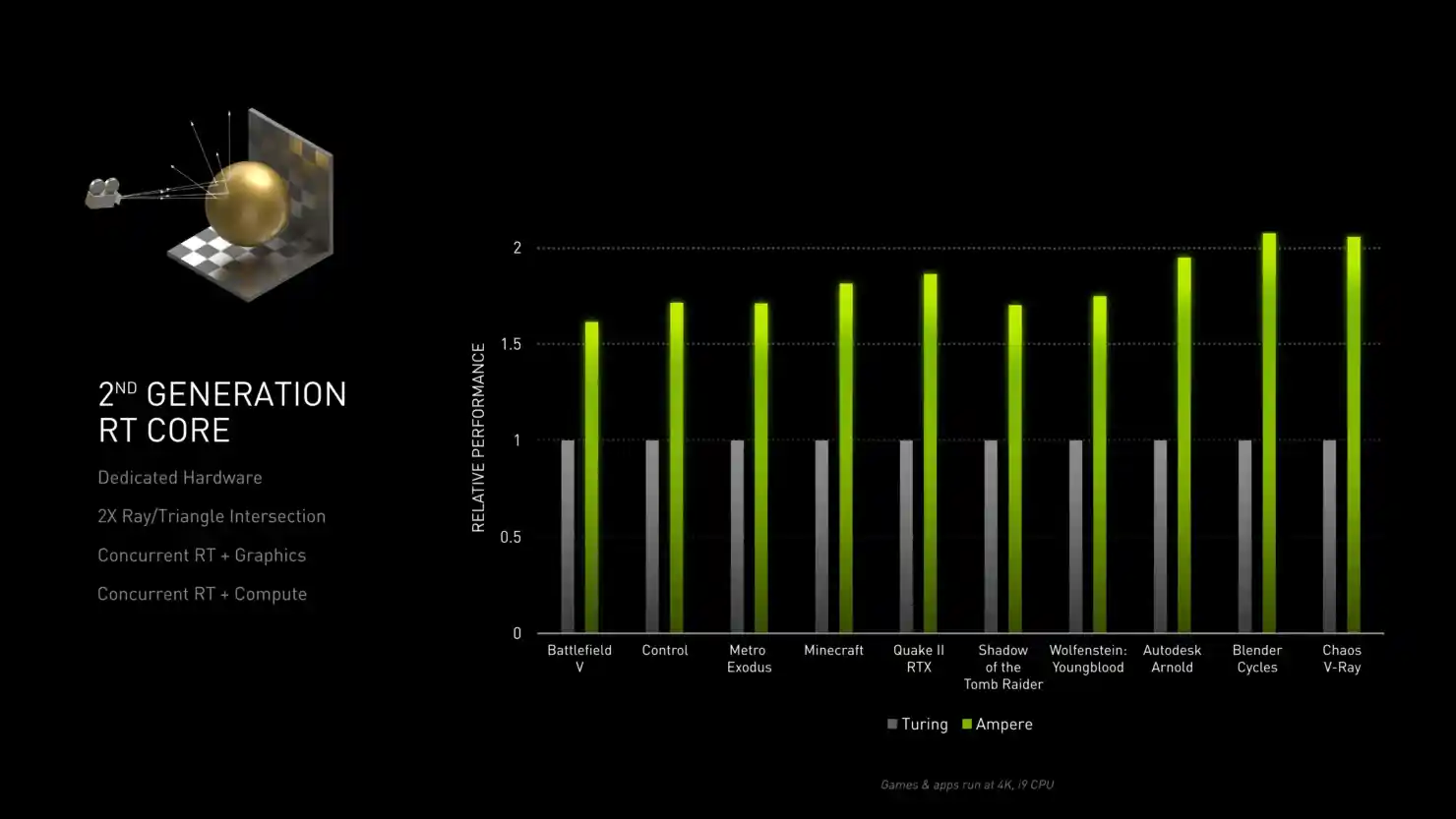

Second-gen RT Cores
New dedicated RT Cores deliver 2x the amount of the prior generation, plus concurrent ray tracing and shading and compute, with 78 RT-TFLOPS of dispensation power.
Third-gen Tensor Cores
New dedicated Tensor Cores, with up to 2x the throughput of the previous generation, making it sooner and more effectual to run AI-powered technologies, like NVIDIA DLSS, and 320 Tensor-TFLOPS of processing power.

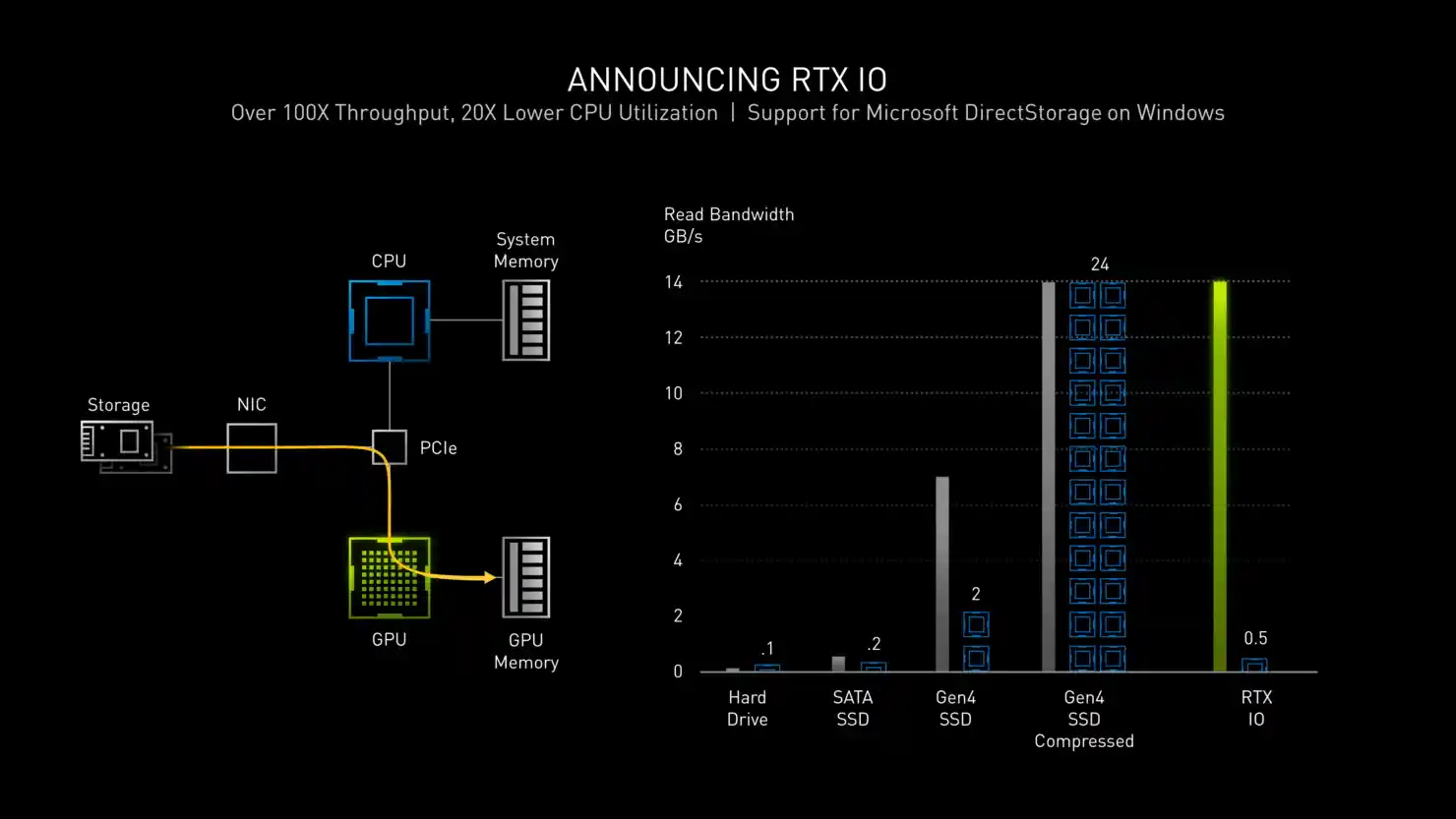

NVIDIA RTX IO
Enables rapid GPU-based loading and game asset decompression, hurrying input/output performance by up to 100x compared with hard drives and old-style storage APIs. In aggregation with Microsoft’s new DirectStorage for Windows API, RTX IO offloads loads of CPU cores’ worth of work to the RTX GPU, educating frame rates and permitting near-instantaneous game loading
World’s fastest graphics memory
NVIDIA has worked with Micron to create the world’s fastest separate graphics memory for the RTX 30 Series, GDDR6X. It delivers data speeds of 1TB/s system memory bandwidth for graphics card applications, making the most of game and app presentation.
Next-gen process technology
New 8N NVIDIA custom course from Samsung, which permits for higher transistor density and more efficiency.
NVIDIA GeForce RTX 3090 Ti 24 GB Graphics Card Specifications

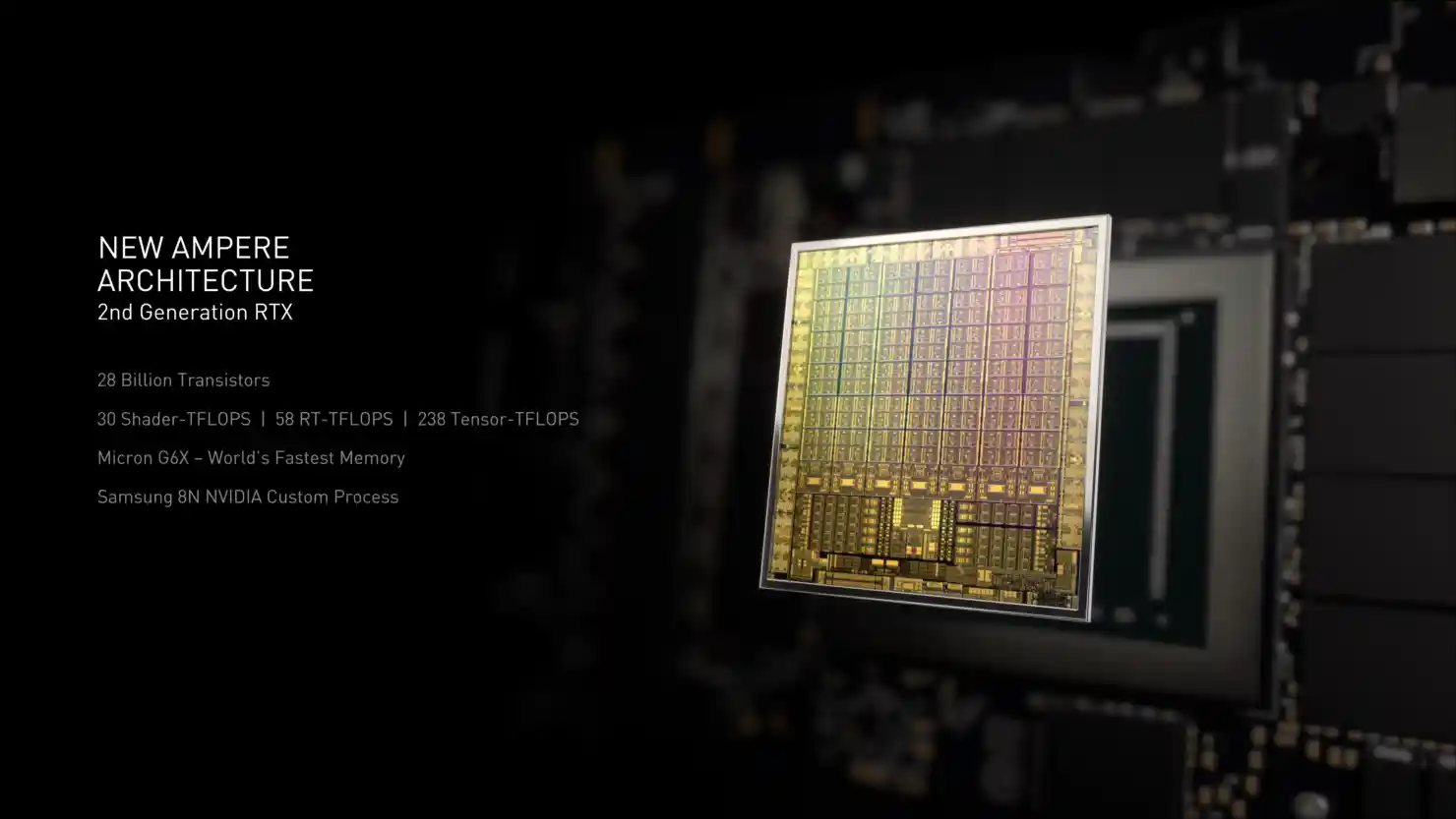

At the heart of the NVIDIA GeForce RTX 3090 Ti graphics card lies the GA102 GPU. The GA102 is the star gaming GPU and also the wildest gaming GPU that NVIDIA has produced. The GPU is based on Samsung’s 8nm custom process node planned specifically for NVIDIA and features a total of 28 Billion transistors. It measures 628mm2 which makes it the 2nd main gaming GPU ever produced right below the Turing TU102 GPU which is mechanical the RTX 2080 Ti and Titan RTX.

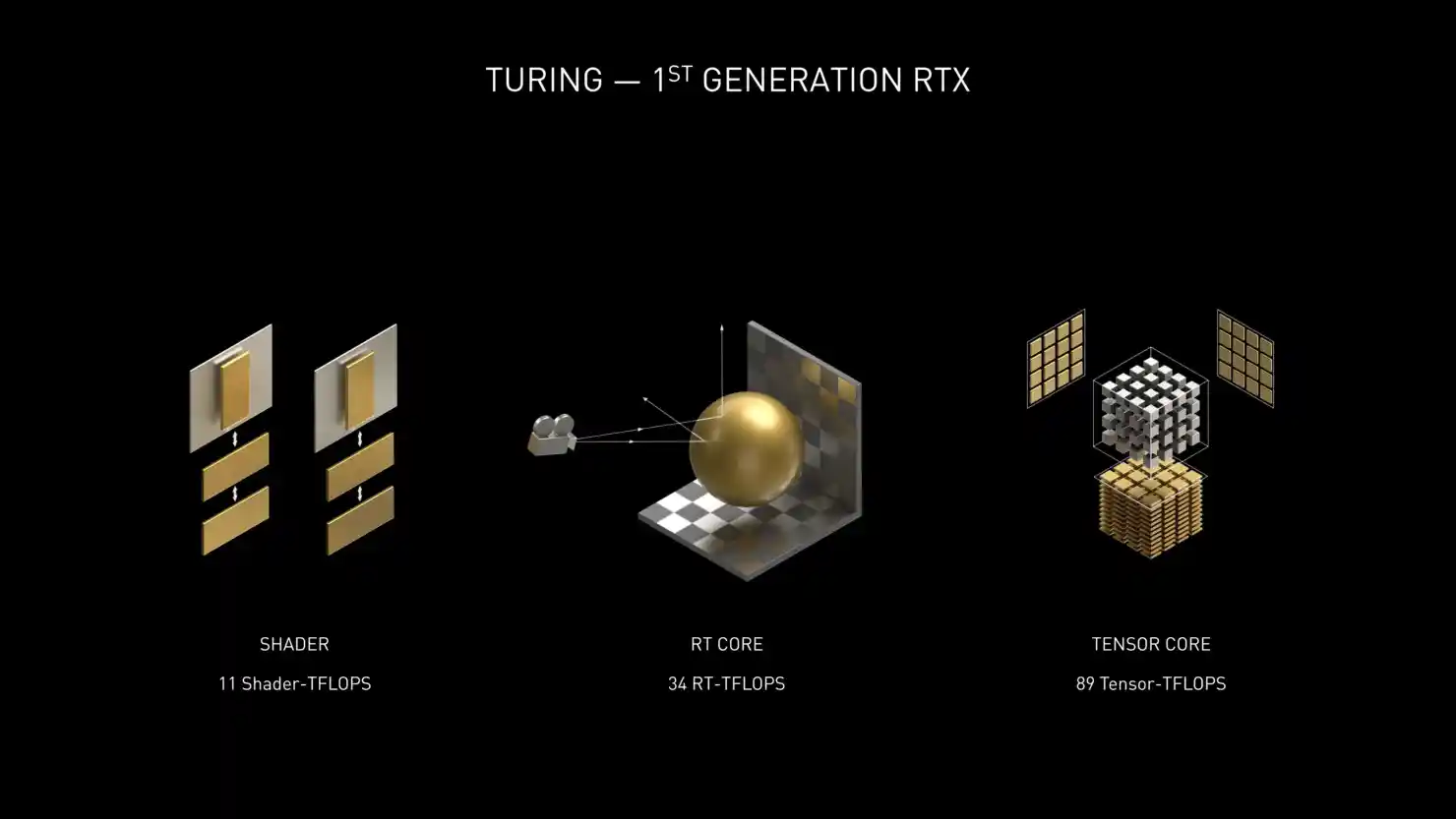

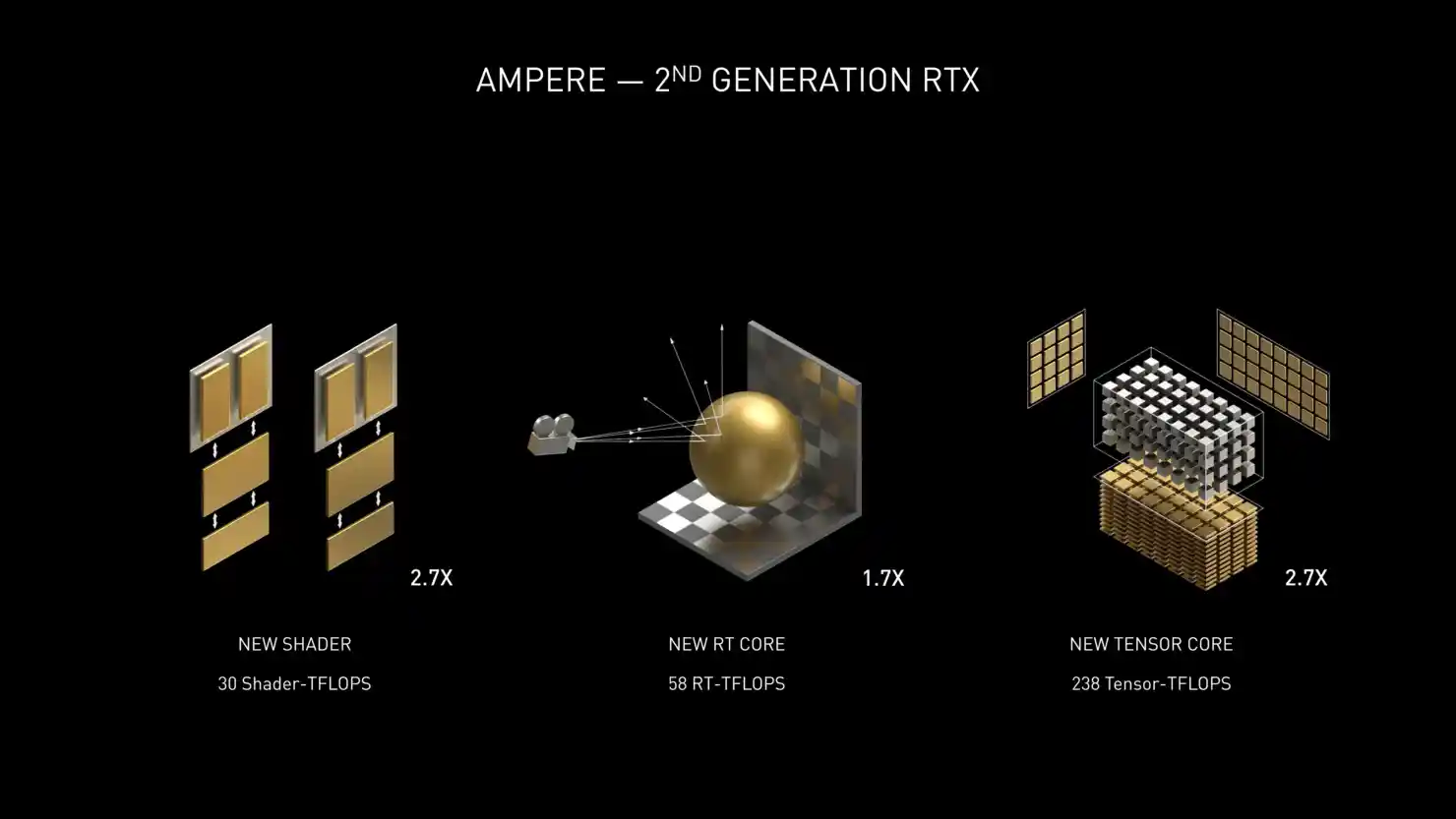

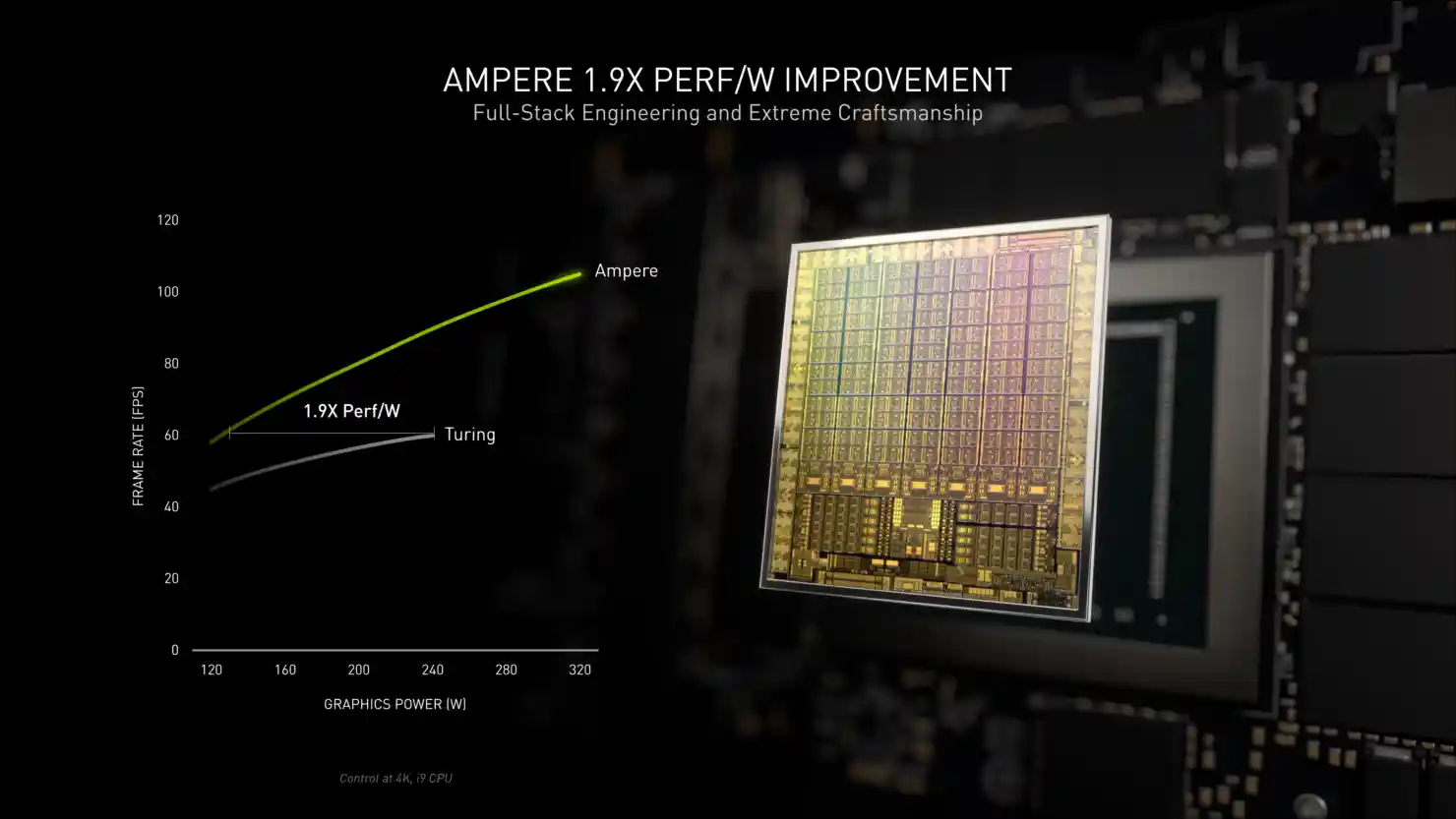

The new shader core on the NVIDIA Ampere architecture is 2.7x faster, the new RT cores are 1.7x faster while the new Tensor cores are up to 2.7x faster than the preceding generation Turing GPUs. The 2nd Generation RT core transports dedicated hardware-accelerated ray-tracing performance & features twice the ray/triangles juncture with concurrent RT graphics and compute operations.
For the GeForce RTX 3090, NVIDIA has permitted a total of 84 SM units on its flagship which results in a total of 10,752 CUDA cores (vs 82 SM / 10496 cores on RTX 3090 Non-Ti). In totaling the CUDA cores, NVIDIA’s GeForce RTX 3090 Ti also comes crammed with next-generation RT (Ray-Tracing) cores, Tensor cores, and brand new SM or streaming multi-processor units. The GPU runs at a base clock speed of 1560 MHz and an upgrading clock speed of 1860 MHz. The card has a TDP of 450W (a 100 Watt increase over the RTX 3090).
- nvidia geforce rtx 30 series graphics cards image 01
- nvidia geforce rtx 30 series graphics cards image 02
- nvidia geforce rtx 30 series graphics cards image 03
- nvidia geforce rtx 30 series graphics cards image 04
- nvidia geforce rtx 30 series graphics cards image 05
- nvidia geforce rtx 30 series graphics cards image 06
In terms of memory, the GeForce RTX 3090 Ti comes crowded with 24 GB of memory and that too is the next-generation GDDR6X design. With Micron’s latest and greatest Nvidia RTX graphics card memory dies, the RTX 3090 Ti can deliver GDDR6X memory speeds of 21 Gbps. That slanting with a bus interface of 384-bit will bring a cumulative bandwidth of 1008 Gbps.
The NVIDIA GeForce RTX 3090 Ti graphics card, is also rumored to be the first PCIe Gen 5.0 obedient graphics card, rocking a single 16-pin power connection that can stock up to 600 Watts of power to the card.
You can realize that the connector is valued for 600W power transfer is PCIe Gen 5.0 compatible & not designed for legacy PCIe Gen 2 or Gen 3 cards.

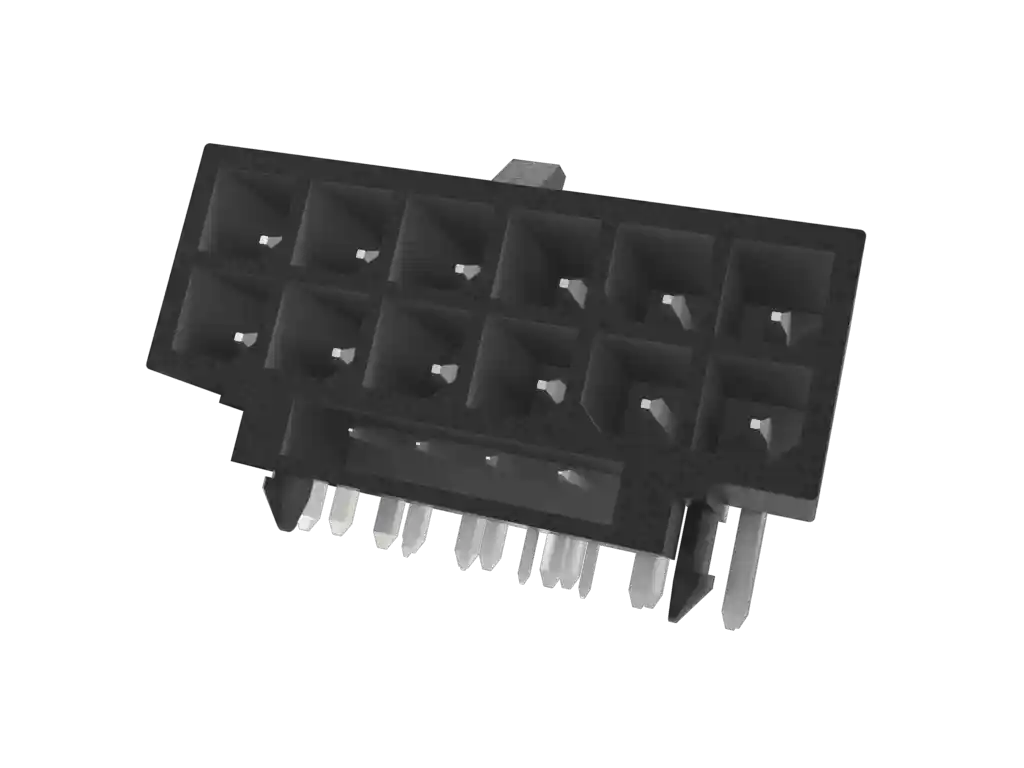

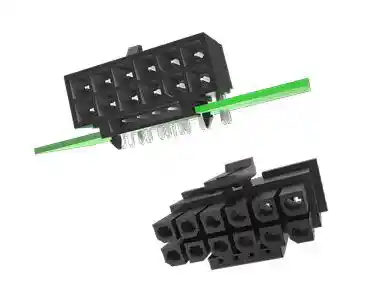

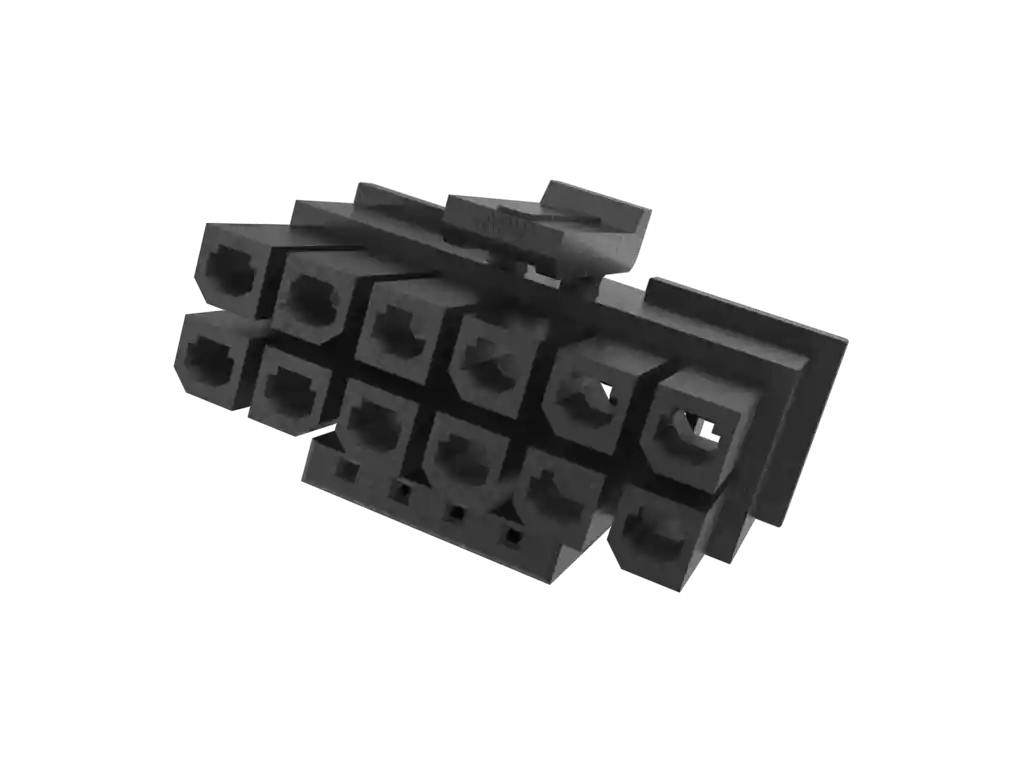

Amphenol ICC introduces the Gen 5, Minitek Pwr PCIe connector system. This new introduction CEM 5.0 PCI Express 12VHPWR auxiliary hybrid connector and cable assembly support the 600W GPU cards. The 12VHPWR connector is not designed to mate with legacy PCI Express 2x3 and 2x4 12V Auxiliary Power connectors. The 12VHPWR connector power pins have a 3.00mm pitch, while the contacts in a legacy 2x3 and 2x4 connector lie on a larger 4.20mm pitch. New PCIe Connector System (CEM5) is designed for power applications with current rating upto 9.5A/pin (12 pins energized) and the 4 signal pins supporting signal transmission. - Rated current up to 9.5A per contact with all 12 power contacts and 4 Signal contacts - Fully isolated terminals - Positive locking on housing with low thumb latch operation - Low level contact resistance: 6mΩ max.
- nvidia rtx 3090 ti power connector img 02
- nvidia rtx 3090 ti power connector img 03
- nvidia rtx 3090 ti power connector img 01
As for its feature set, the NVIDIA GeForce RTX 3090 Ti 24 GB graphics card rocks all the modern NV feature customary such as the latest NVENC Encoder and NVCDEC Decoder, sustenance for the latest APIs, 2nd Generation ray-tracing cores, 3rd Gen Tensor cores. It cartons all the contemporary RTX features such as DLSS, Reflex, Broadcast, Freestyle, Ansel, Resizable-BAR, Highlights, Shadowplay, and G-SYNC support too.
NVIDIA GeForce RTX 3090 Ti 24 GB Graphics Card Performance
As for the recital of this monster, Nvidia GPU has only shared the FLOPs and no actual gaming numbers. During their CES 2022 performance, the card was specified to offer 78 TFLOPs (RT), 40 TFLOPs (FP32), and 320 TFLOPs (Tensor) horsepower. Associated to the RTX 3090 Non-Ti graphics card, that’s an 11% increase in shader, 13% increase in RT, and 12% surge in tensor TFLOPs.
If we take the RTX 3080 & RTX 3080 Ti numbers, we see a similar TFLOPs increase, ranging from 13-15% but the actual gaming performance difference is around 7-10%. So for the RTX 3090 Ti, we can expect a similar 5-10% performance gain over the RTX 3090 Non-Ti. This would mean that a range of games that were just shy below the 60 FPS mark in 4K can now be played at native resolution & if you want to leverage higher visual fidelity through ray-tracing, the RTX 3090 Ti can be able to allow that. For those who want the best of both worlds well DLSS Quality and Raytracing go well together on NVIDIA’s RTX graphics cards.
The NVIDIA GeForce RTX 3090 and AMD Radeon RX 6900 XT previously trade blows with one another though NVIDIA has the advantage of DLSS/RT at their discarding and the 3090 Ti can put them back at the top of the game. Again, we aren’t expecting the RTX 3090 Ti to offer enormous gains over the current RTX 3090 and the greatest RTX 3090 proprietors would just stick with what they have but those who want to revenue things to take belongings to the next level, the RTX 3090 Ti is just that card!
NVIDIA GeForce RTX 3090 Ti 24 GB Graphics Card Price & Availability
As for price and obtainability, NVIDIA hasn’t officially announced either for the Nvidia RTX 3090 ti, graphics card. They have only stated that more particulars for the graphics card would be broadcast in late January though that didn’t happen at all so we can presume that the card has been behind until further notice.
But given the knock-in specs and performance, one can easily gather that the GeForce RTX 3090 Ti would cost more than the MSRP of the RTX 3090 which is $1499 US. We could expect an MSRP that ends up between $1499-$1999 US but convincingly, the custom variations for the Nvidia graphics card that have also shown up in various retail outlets, demonstration pricing over $3000 US and up to an insane $4500 US. So that should give you an impression of where the RTX 3090 Ti is headed for.
- Buy The NVIDIA GeForce RTX 3090 Ti 24 GB Graphics Card @ Amazon
- Buy The NVIDIA GeForce RTX 3090 Ti 24 GB Graphics Card @ Newegg
- Buy The NVIDIA GeForce RTX 3090 Ti 24 GB Graphics Card @ BestBuy
- Buy The NVIDIA GeForce RTX 3090 Ti 24 GB Graphics Card @ MicroCenter
- Buy The NVIDIA GeForce RTX 3090 Ti 24 GB Graphics Card @ NVIDIA Shop
The graphics card will be accessible in several custom models at the presentation from all major NVIDIA AIB partners. So far, we have seen traditional models from ASUS, EVGA, Gigabyte, and MSI leak out
- MSI GeForce RTX 3090 Ti Series
- ASUS GeForce RTX 3090 Ti Series
- Gigabyte GeForce RTX 3090 Ti Series
- ZOTAC GeForce RTX 3090 Ti Series
- GALAX GeForce RTX 3090 Ti Series
- PNY GeForce RTX 3090 Ti Series
- Palit GeForce RTX 3090 Ti Series
- Inno3D GeForce RTX 3090 Ti Series
- EVGA GeForce RTX 3090 Ti Series
- Colorful GeForce RTX 3090 Ti Series
- Gainward GeForce RTX 3090 Ti Series
NVIDIA GeForce RTX 3090 Ti 24 GB Graphics Card Latest Reports & Rumors
The NVIDIA GeForce RTX 3090 Ti 24 GB graphics card has been specified to be hit by a making defect and rumors are detection subjects with both the BIOS and PCB design. We don’t have any specifics as to what the issue is but recently, it was labeled that the BIOS hitches have been. Board associates of NVIDIA’s would resume the manufacture of the RTX 3090 Ti and we can expect a statement to happen soon!
NVIDIA GeForce RTX 30 Series Graphics Card Specifications
Graphics Card Name | NVIDIA GeForce RTX 3090 Ti | NVIDIA GeForce RTX 3090 | NVIDIA GeForce RTX 3080 Ti | NVIDIA GeForce RTX 3080 12 GB | NVIDIA GeForce RTX 3080 | NVIDIA GeForce RTX 3070 Ti 16 GB | NVIDIA GeForce RTX 3070 Ti | NVIDIA GeForce RTX 3070 | NVIDIA GeForce RTX 3060 Ti | NVIDIA GeForce RTX 3060 | NVIDIA GeForce RTX 3050 |
---|---|---|---|---|---|---|---|---|---|---|---|
GPU Name | Ampere GA102-350? | Ampere GA102-300 | Ampere GA102-225 | Ampere GA102-220? | Ampere GA102-200 | Ampere GA104-400 | Ampere GA104-400 | Ampere GA104-300 | Ampere GA104-200 | Ampere GA106-300 | Ampere GA106-150 |
Process Node | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm | Samsung 8nm |
Die Size | 628.4mm2 | 628.4mm2 | 628.4mm2 | 628.4mm2 | 628.4mm2 | 395.2mm2 | 395.2mm2 | 395.2mm2 | 395.2mm2 | 276mm2 | 276mm2 |
Transistors | 28 Billion | 28 Billion | 28 Billion | 28 Billion | 28 Billion | 17.4 Billion | 17.4 Billion | 17.4 Billion | 17.4 Billion | 13.2 Billion | 13.2 Billion |
CUDA Cores | 10752 | 10496 | 10240 | 8960 | 8704 | 6144 | 6144 | 5888 | 4864 | 3584 | 2560 |
TMUs / ROPs | 336 / 112 | 328 / 112 | 320 / 112 | 280 / 104 | 272 / 96 | 184 / 96 | 184 / 96 | 184 / 96 | 152 / 80 | 112 / 64 | TBC |
Tensor / RT Cores | 336 / 84 | 328 / 82 | 320 / 80 | 280 / 70 | 272 / 68 | 184 / 46 | 184 / 46 | 184 / 46 | 152 / 38 | 112 / 28 | TBC |
Base Clock | 1560 MHz | 1400 MHz | 1365 MHz | TBA | 1440 MHz | TBA | 1575 MHz | 1500 MHz | 1410 MHz | 1320 MHz | 1550 MHz |
Boost Clock | 1860 MHz | 1700 MHz | 1665 MHz | TBA | 1710 MHz | TBA | 1770 MHz | 1730 MHz | 1665 MHz | 1780 MHz | 1780 MHz |
FP32 Compute | 40 TFLOPs | 36 TFLOPs | 34 TFLOPs | TBA | 30 TFLOPs | TBA | 22 TFLOPs | 20 TFLOPs | 16 TFLOPs | 13 TFLOPs | 9.1 TFLOPs |
RT TFLOPs | 74 RFLOPs | 69 TFLOPs | 67 TFLOPs | TBA | 58 TFLOPs | TBA | 44 TFLOPs | 40 TFLOPs | 32 TFLOPs | 25 TFLOPs | 18.2 TFLOPs |
Tensor-TOPs | TBA | 285 TOPs | 273 TOPs | TBA | 238 TOPs | TBA | 183 TOPs | 163 TOPs | 192 TOPs | 101 TOPs | 72.8 TOPs |
Memory Capacity | 24 GB GDDR6X | 24 GB GDDR6X | 12 GB GDDR6X | 12 GB GDDR6X | 10 GB GDDR6X | 16 GB GDDR6X | 8 GB GDDR6X | 8 GB GDDR6 | 8 GB GDDR6 | 12 GB GDDR6 | 8 GB GDDR6 |
Memory Bus | 384-bit | 384-bit | 384-bit | 384-bit | 320-bit | 256-bit | 256-bit | 256-bit | 256-bit | 192-bit | 192-bit |
Memory Speed | 21 Gbps | 19.5 Gbps | 19 Gbps | 19 Gbps | 19 Gbps | 21 Gbps | 19 Gbps | 14 Gbps | 14 Gbps | 16 Gbps | 14 Gbps |
Bandwidth | 1008 GB/s | 936 GB/s | 912 Gbps | 912 Gbps | 760 GB/s | 672 GB/s | 608 GB/s | 448 GB/s | 448 GB/s | 384 GB/s | 224 GB/s |
TGP | 450W | 350W | 350W | 350W | 320W | ~300W | 290W | 220W | 175W | 170W | 130W |
Price (MSRP / FE) | TBD | $1499 US | $1199 | $999 US? | $699 US | $599 US? | $599 US | $499 US | $399 US | $329 US | $249 US |
Launch (Availability) | 27th January 2022 | 24th September 2020 | 3rd June 2021 | 11th January 2022 | 17th September 2020 | Q1 2022? | 10th June, 2021 | 29th October 2020 | 2nd December 2020 | 25th February 2021 | 27th January 2022 |
